Brand: Appleton
ADR6034P4

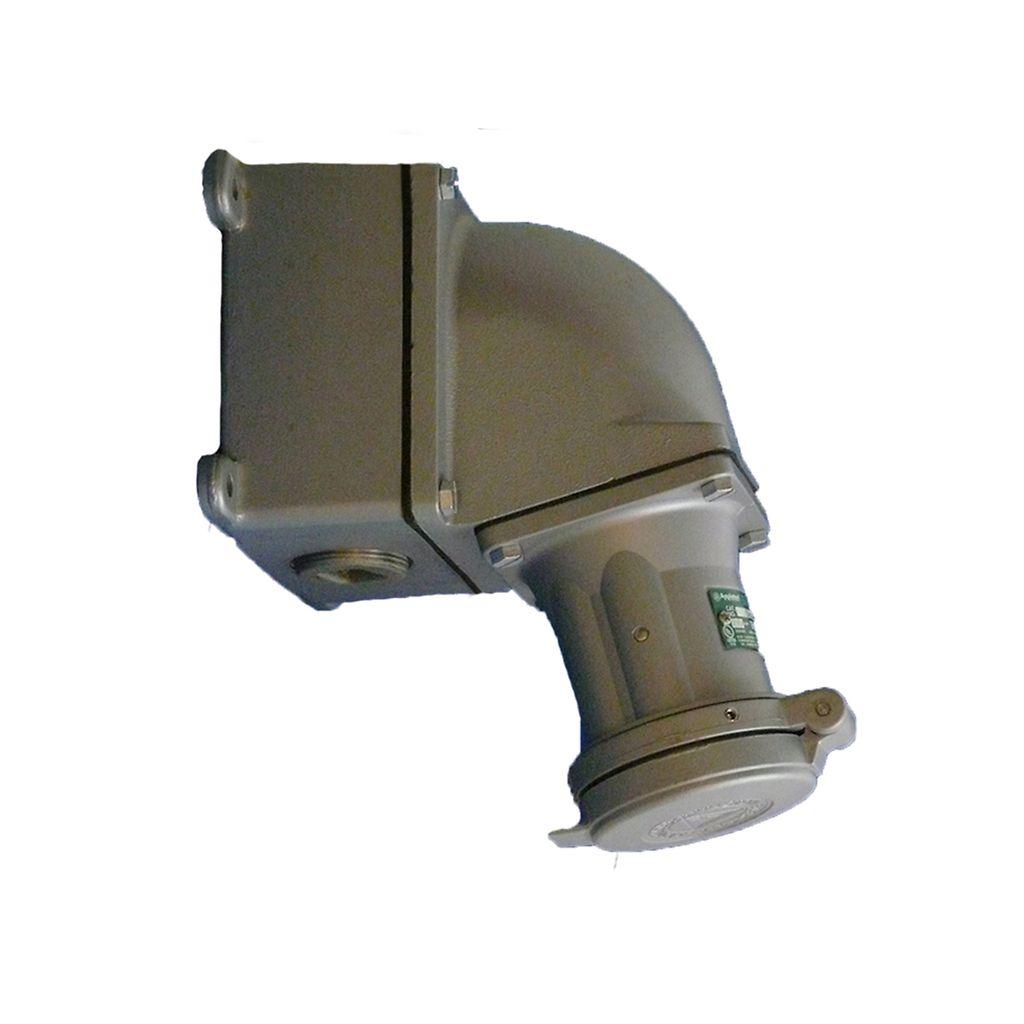

Appleton ADR6034P4 Electrical Receptacle
Part Number # ADR6034P4
SKU # 2359965
$601.54 / Each
Appleton ADR6034P4 Key Features
| Brand: | Appleton |
|---|---|
| Part Number # : | ADR6034P4 |
| SKU #: | 2359965 |
| Amperage Rating: | 60 A |
| NEMA Rating: | NEMA 3/3R/4/4X |
| Number of Poles: | 4 |
| Number of Wires: | 3 |
| Temperature Rating (Degrees F): | -13 to 104 deg F |
| Terminal Type: | Screw |
| Type: | Pin and Sleeve |
| Material: | Aluminum |
| Manufacturer Name: | Emerson Electric |
| UNSPSC: | 39121406 |
| UPC: | 00078138184810 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$601.54 / Each
Quantity:
- Appleton, ADR6034P4, Receptacle Assembly, Pin and Sleeve, 600 V AC, 60 A, 4 Pole, 3 Wires, NEMA 3/3R/4/4X NEMA Rating, -13 to 104 deg F, Screw Terminal, Aluminum
ADR6034P4 Application
Suitable for classified locations when used with Appleton EBR, EBRH, JBR, MD2SR, FSQC, ID2SR, or DBR hazardous interlocked receptaclesADR6034P4 Item Features
- Available in 30, 60, 100, 150, 200, and 400 A units
- Circuit breaking - in 30, 60, 100, and 200 A units, any arcing created as line and load terminals disengage is safely confined deep within terminal cavities
- Plugs may be withdrawn in an emergency under full rated loads without separate disconnect switch
- Positive polarization - only plugs and receptacles of same style, number of poles and ampere rating can be used together
- Ambient temperature range of -25 deg C to 40 deg C (-13 deg F to 104 deg F)
- Available in two grounding styles, Style 1 (shell only) and Style 2 (shell and extra pole)
- Locking screw and slot prevents plug cable collar from 8221, backing off8221,
- Controlled length contacts ensure that ground makes first and breaks last for added safety
- Contacts exert constant pressure along entire contact surface and provide electrical continuity
- Insulating blocks provide greatest dielectric and mechanical strength and lowest arc tracking
- Neoprene bushing compressed by cable collar prevents entrance of water
- Bushing is highly resistant to hydrocarbon deterioration and is self-extinguishing
- 30, 60, 100, and 150 A Powertite
