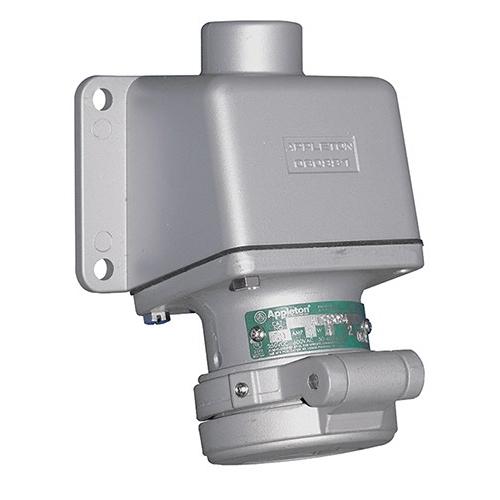

Appleton ADRE303475 Pin and Sleeve Receptacle
Part Number # ADRE303475
SKU # 2192860
Appleton ADRE303475 Key Features
| Brand: | Appleton |
|---|---|
| Part Number # : | ADRE303475 |
| SKU #: | 2192860 |
| Amperage Rating: | 30, 30 A |
| Cord Diameter: | 1/2 to 1-1/4, 1/2 to 1-1/4 in |
| Dimensions: | 6.88 in H x 5 in W x 3.45 in D |
| Frequency Rating: | 50 to 400, 50 to 400 Hz |
| Horsepower: | 20, 20 hp |
| Hub Size: | 3/4, 3/4 in |
| NEMA Rating: | NEMA 3/3R/4/4X |
| Number of Poles: | 4 |
| Number of Wires: | 3 |
| Temperature Rating (Degrees F): | -40 to 225, -40 to 225 deg F |
| Terminal Type: | Pressure Wire, Pressure Wired |
| Type: | 3-Phase Grounding Style 2 |
| Country of origin: | MX |
| Material: | Copper Free Aluminum |
| Manufacturer Name: | Emerson Electric |
| UNSPSC: | 39121406 |
| UPC: | 00781381158527 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Appleton ADRE303475 Pin and Sleeve Receptacle
Brand: Appleton
Part Number: ADRE303475
Appleton Powertite Pin and Sleeve Receptacle, 3-Phase Grounding Style 2, 600/250 VAC/VDC, 30 A, 20 hp, 50 to 400 Hz Frequency, 4 Pole, 3 Wires, NEMA 3/3R/4/4X NEMA Rating, 3/4 in Hub, 1/2 to 1-1/4 in Diameter Cord, -40 to 225 deg F, Pressure Wire Terminal, Copper Free Aluminum, 6.88 in H x 5 in W x 3.45 in D Dimensions
Additional Description: APLE-ADRE303475 RECP & MTG BOX 30A 3W4P
Catalog Description: Powertite Grounding Style 2 Receptacle With AEE Mounting Box, Number Of Poles: 4, Number Of Wires: 3, Wire Size: 10 - 6 AWG (Building), 10 - 8 AWG (Extra Flex), Amperage Rating: 30 AMP, Voltage Rating: 600 VAC At 50 - 400 HZ, 250 VDC,
ADRE303475 Application
ACP3034BC Metallic and NMACP3034BC Non-Metallic Clamping Ring Plugs, Motor Generator Units, Welders, Pumps, Compressors, Cellular Relay Stations and Similar Apparatus, Shipping Docks, Rough Usage Construction, Ports and Other Ship To Shore ApplicationsADRE303475 Item Features
- Shell and extra pole grounding style 2
- Natural finish glass filled polyester insulating blocks
- 9/32 in dia wire recess
- Designed to supply power to portable or fixed electrical equipment
- Suitable for use in locations where a weatherproof enclosure is required
- Weatherproof spring door, brass with beryllium copper springs
ADRE303475 Standards
UL 1682, UL 1686, UL 50E; UL Listed: E145916, E145917; CSA Standard: C22.2 No. 182.1; CSA Certified: 065179; NEMA FB11SKU #2192860Part Number #ADRE303475UNSPSC39121406UPC00781381158527
Image provided may only be a representation of final product and may include optional equipment
