Part Number # ADRE6034150
SKU # 2437369
Image Disclaimers Message
Appleton ADRE6034150 Key Features
| Brand: | Appleton |
|---|---|
| Part Number # : | ADRE6034150 |
| SKU #: | 2437369 |
| Amperage Rating: | 60 A |
| Cord Diameter: | 1/2 to 1-1/4 in |
| Dimensions: | 9.75 in H x 6.38 in W x 4.73 in D |
| Frequency Rating: | 50 to 400 Hz |
| Horsepower: | 30 hp |
| Hub Size: | 1-1/2 in |
| NEMA Rating: | NEMA 3/3R/4/4X |
| Number of Poles: | 4 |
| Number of Wires: | 3 |
| Temperature Rating (Degrees F): | -40 to 225 deg F |
| Terminal Type: | Pressure Wire |
| Type: | 3-Phase Grounding Style 2 |
| Country of origin: | MX |
| Material: | Copper Free Aluminum |
| Manufacturer Name: | Emerson Electric |
| UNSPSC: | 39121406 |
| UPC: | 00781381158664 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$636.74 / Each
Quantity:

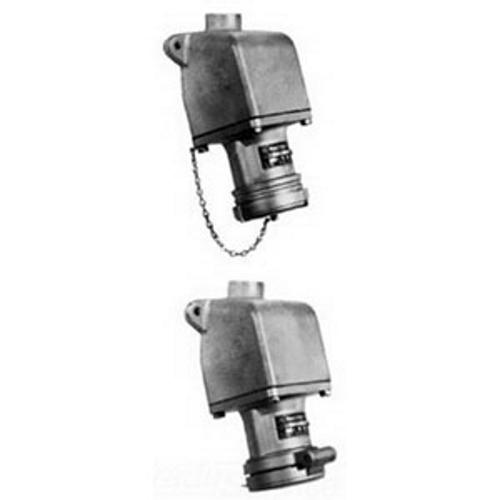

- Appleton Powertite Pin and Sleeve Receptacle, 3-Phase Grounding Style 2, 600 V AC/250 V DC, 60 A, 30 hp, 50 to 400 Hz Frequency, 4 Pole, 3 Wires, NEMA 3/3R/4/4X NEMA Rating, 1-1/2 in Hub, 1/2 to 1-1/4 in Diameter Cord, -40 to 225 deg F, Pressure Wire Terminal, Copper Free Aluminum, 9.75 in H x 6.38 in W x 4.73 in D Dimensions
ADRE6034150 Application
ACP6034BC Metallic and NMACP6034BC Non-Metallic Clamping Ring Plugs, Motor Generator Units, Welders, Pumps, Compressors, Cellular Relay Stations and Similar Apparatus, Shipping Docks, Ports, Rough Usage Construction and Other Ship To Shore ApplicationsADRE6034150 Item Features
- Shell and extra pole grounding style 2
- Natural finish glass filled polyester insulating blocks
- 5/16 in dia wire recess
- Designed to supply power to portable or fixed electrical equipment
- Suitable for use in locations where a weatherproof enclosure is required
- Weatherproof spring door, brass with beryllium copper springs
ADRE6034150 Standards
UL 1682, UL 1686, UL 50E; UL Listed: E145916, E145917; CSA Standard: C22.2 No. 182.1; CSA Certified: 065179; NEMA FB11SKU #2437369Part Number #ADRE6034150UNSPSC39121406UPC00781381158664
