Part Number # AEBB10036DS
SKU # 2450337
Image Disclaimers Message
Brand: Appleton
AEBB10036DS

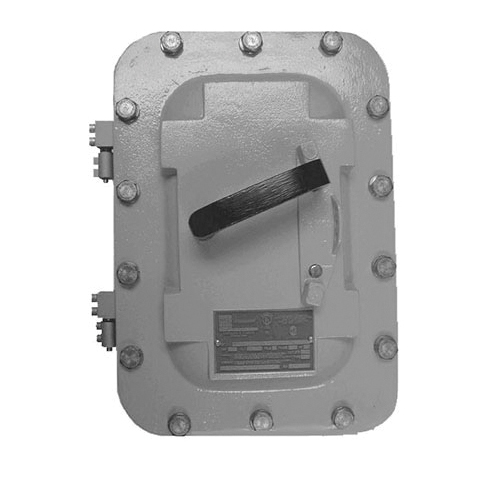

Appleton AEBB10036DS
Part Number # AEBB10036DS
SKU # 2450337
$4047.35 / Each
Typical price:$4234.15 / Each
Appleton AEBB10036DS Key Features
| Brand: | Appleton |
|---|---|
| Part Number # : | AEBB10036DS |
| SKU #: | 2450337 |
| Actuator Type: | External Handle |
| Amperage Rating: | 100 A |
| Dimensions: | 20.5 in H x 11 in W x 8.97 in D |
| Enclosure Type: | NEMA 4/4X/7/9 |
| Finish: | Epoxy Powder Coated |
| Horsepower: | 75 hp, 25 hp |
| Number of Poles: | 3 |
| Number of Wires: | 3 |
| Phase: | 3 |
| Series: | AE Series |
| Terminal Type: | Ground Lug |
| Type: | Dust-Ignitionproof Explosionproof Hinged Non Fused |
| Color: | Gray |
| Country of origin: | US |
| Material: | Copper Free Aluminum |
| Mounting type: | Bolt |
| Manufacturer Name: | Emerson Electric |
| UNSPSC: | 39122233 |
| UPC: | 00781381848060 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$4047.35 / Each
Typical price:$4234.15 / Each
Quantity:
- Appleton Disconnect Switch, Dust-Ignitionproof Explosionproof Hinged Non Fused, Series: AE Series, 600 V AC/120 to 250 V DC, 100 A, 75 hp, 25 hp, 3 ph, 3 Pole, 3 Wires, External Handle Actuator, NEMA 4/4X/7/9 Enclosure, Bolt Mounting, Ground Lug Terminal, 20.5 in H x 11 in W x 8.97 in D Dimensions, Copper Free Aluminum, Gray, Epoxy Powder Coated
AEBB10036DS Application
Overload and Short Circuit Protection, Control of Lighting and Power Circuits ApplicationsAEBB10036DS Item Features
- Precision machined flame path between box and cover, O-ring gasket ensures watertight integrity
- Bolt-On stainless steel slotted mounting feet
- Stainless steel, captive Quad-Lead cover bolts are standard
- Ground lug package and installation instructions for termination of ground wire enclosed
- External operating handle with stops for limiting handle travel
- Disconnects operators can be locked in the On or Off position
- External flange maximizes internal space
- Standard outlets top and bottom for line and load wiring
- Plugged 1/2 in outlets top and bottom for breather and drain
- Disconnects mounted on a galvanized steel removable pan
AEBB10036DS Standards
Buy American Act Compliant|NEC Class I, Div 1 and 2, Groups B, C, D, Class II, Div 1 and 2, Groups E, F, G, Class III|UL 1203|UL File No. E84577SKU #2450337Part Number #AEBB10036DSUNSPSC39122233UPC00781381848060
