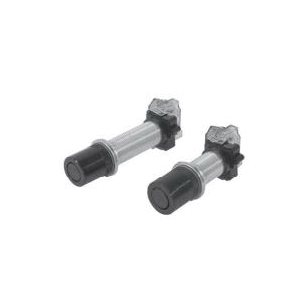

Appleton AEPBAL Non-Illuminated Pushbutton
Part Number # AEPBAL
SKU # 2418015
Appleton AEPBAL Key Features
| Brand: | Appleton |
|---|---|
| Part Number # : | AEPBAL |
| SKU #: | 2418015 |
| Contact Configuration: | 1NO |
| Contact Rating: | 10 A at 600 V AC, 10 A at 600 VAC |
| Enclosure Type: | NEMA 4/7B/7C/7D/9E/9F/9G |
| Environmental Conditions: | -40 to 55 deg C Temperature |
| Type: | Single Long Barrel |
| Connection type: | NPS |
| Country of origin: | US |
| Manufacturer Name: | Emerson Electric |
| UNSPSC: | 39122216 |
| UPC: | 00781381911726 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Appleton AEPBAL Non-Illuminated Pushbutton
Brand: Appleton
Part Number: AEPBAL
Appleton® Non-Illuminated Pushbutton, Single Long Barrel, 1NO Contact Configuration, Momentary Contact, 10 A at 600 VAC Contact, NPS Connection, NEMA 4/7B/7C/7D/9E/9F/9G Enclosure, Black, Environmental Conditions: -40 to 55 deg C Temperature
Additional Description: APLE-AEPBAL PUSHBUTTON BLK 1NO LONG
Catalog Description: Explosionproof Non-Illuminated Pushbutton, Type Long Barrel, Operation Type Momentary, Contact Configuration 1NO, Contact Rating 600 VAC 10 Ampere, Cap/Lens Color Black, Enclosure Class I Div 1 and 2 Group B C D, Class II Div 1 and 2 Group E F G, Class III, NEMA 4/7BCD/9EFG, Approval UL 1203/E77137, CSA C22.2, Constructional Feature Dust-Ignitionproof, Explosionproof, Application Hazardous Location
AEPBAL Application
Hazardous Location ApplicationsAEPBAL Item Features
- All push buttons and selector switches have stainless steel shafts
AEPBAL Standards
Buy American Act Compliant|CSA C22.2|NEC Compliant|CEC Class I Div 1 and 2, Groups B C D Class II, Div 1 and 2, Groups E, F, G Class III|UL 1203 No. E77137SKU #2418015Part Number #AEPBALUNSPSC39122216UPC00781381911726
Image provided may only be a representation of final product and may include optional equipment
