Part Number # AEPL3R
SKU # 2232005

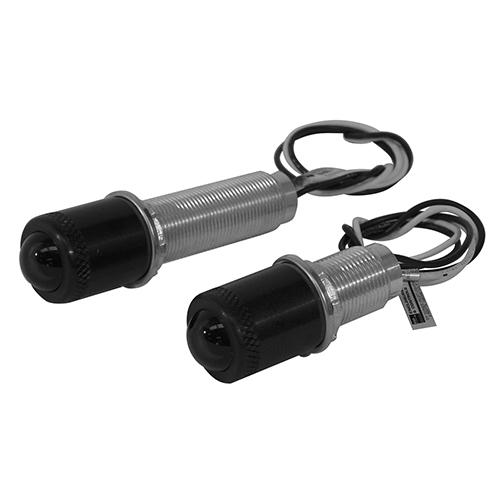

Image provided may only be a representation of
final product and may include optional equipment
Appleton AEPL3R Key Features
| Brand: | Appleton |
|---|---|
| Part Number # : | AEPL3R |
| SKU #: | 2232005 |
| Enclosure Type: | NEMA 4/7B/7C/7D/9E/9F/9G, NEMA 4/7BCD/9EFG |
| Lens Color: | Red |
| Lens Material: | Glass |
| Size: | 1-1/4 in Dia |
| Type: | Standard Short Barrel |
| Country of origin: | US |
| Manufacturer Name: | Emerson Electric |
| UNSPSC: | 39121534 |
| UPC: | 00781381912457 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Appleton AEPL3R Pilot Light
Brand: Appleton
Part Number: AEPL3R
Appleton Pilot Light, Standard Short Barrel, 120 VAC, Red Lens, Glass Lens, 1-1/4 in Dia Size, Round Shape, NEMA 4/7B/7C/7D/9E/9F/9G Enclosure
Additional Description: APLE-AEPL3R P/L RED 120V W/6V LAMP SHORT
Catalog Description: Explosionproof Pilot Light, Type Standard, Short Barrel, Constructional Feature Explosionproof, Dust-Ignitionproof, Lamp Input Type 120/6 VAC Transformer, Lens Style/Size 1.25 Inch Dia, Lens Color Red, Lens Material Glass, Enclosure Class I Div 1 and 2 Group B C D, Class II Div 1 and 2 Group E F G, Class III, NEMA 4/7BCD/9EFG, Application Hazardous Location, Approval UL 1203/E77137, CSA C22.2
AEPL3R Application
Hazardous LocationAEPL3R Standards
Buy American Act Compliant|CSA C22.2 Certified|NEC/CEC Class I Div 1, 2 Groups B C D, Class II Div 1, 2 Groups E F G, Class III Certified|UL 1203/E77137SKU #2232005Part Number #AEPL3RUNSPSC39121534UPC00781381912457
