Appleton AEPLG8A Pilot Light
Part Number # AEPLG8A
SKU # 2415088

AEPLG8A
Appleton AEPLG8A Pilot Light
Part Number # AEPLG8A
SKU # 2415088
Appleton AEPLG8A Key Features
| Brand: | Appleton |
|---|---|
| Part Number # : | AEPLG8A |
| SKU #: | 2415088 |
| Size: | 1-1/4 in Dia |
| Type: | Guarded Pigtail Short Barrel |
| UNSPSC: | 39121534 |
| UPC: | 00781381913928 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Prices are in USD. Orders shipped to Canada may be subject to duties, taxes and brokerage fees, collected by the carrier on delivery.
Appleton AEPLG8A Pilot Light
Brand: Appleton
Part Number: AEPLG8A
Appleton Pilot Light, Guarded Pigtail Short Barrel, 24 V AC/DC, Amber Lens, Glass Lens, 1-1/4 in Dia Size, Round Shape, NEMA 4/7B/7C/7D/9E/9F/9G Enclosure
Additional Description: APLE-AEPLG8A P/L AMBER 24V SHORT W/GUARD NON-CANCELLABLE NON-RETURNABLE
Catalog Description: Explosionproof Pilot Light, Type Guarded, Pigtail, Short Barrel, Constructional Feature Explosionproof, Dust-Ignitionproof, Lamp Input Type 24 VAC/VDC, Lens Style/Size 1.25 Inch Dia, Lens Color Amber, Lens Material Glass, Enclosure Class I Div 1 and 2 Group B C D, Class II Div 1 and 2 Group E F G, Class III, NEMA 4/7BCD/9EFG, Application Hazardous Location, Approval UL 1203/E77137, CSA C22.2
AEPLG8A Application
Hazardous Location ApplicationsAEPLG8A Standards
CSA C22.2|NEC Compliant|CEC Class I Div 1, 2 Groups B C D, Class II Div 1, 2 Groups E F G, Class III Certified|UL 1203 E77137SKU #2415088Part Number #AEPLG8AUNSPSC39121534UPC00781381913928

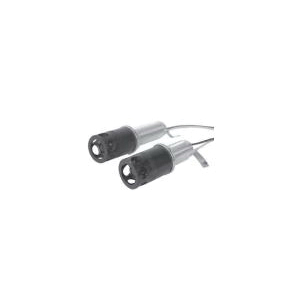

Image provided may only be a representation of final product and may include optional equipment
