Part Number # AEPMRC
SKU # 2443692
Appleton AEPMRC Key Features
| Brand: | Appleton |
|---|---|
| Part Number # : | AEPMRC |
| SKU #: | 2443692 |
| Actuator: | Mushroom Head |
| Contact Configuration: | 1NC |
| Contact Rating: | 10 A at 600 V AC, 10 A at 600 VAC |
| Enclosure Type: | NEMA 4/7B/7C/7D/9E/9F/9G |
| Environmental Conditions: | -40 to 55 deg C Temperature |
| Type: | Short Barrel |
| Connection type: | NPSM |
| Country of origin: | US |
| Manufacturer Name: | Emerson Electric |
| UNSPSC: | 39122216 |
| UPC: | 00781381914758 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.

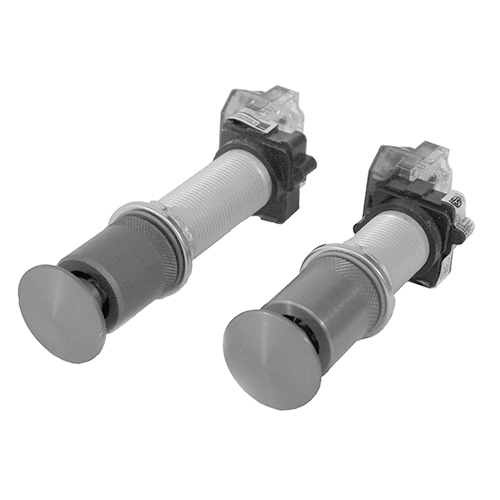

Appleton AEPMRC
Brand: Appleton
Part Number: AEPMRC
Appleton® Non-Illuminated Pushbutton, Short Barrel, 1NC Contact Configuration, Momentary Contact, 10 A at 600 VAC Contact, Mushroom Head Actuator, NPSM Connection, NEMA 4/7B/7C/7D/9E/9F/9G Enclosure, Red, Environmental Conditions: -40 to 55 deg C Temperature
Additional Description: APLE-AEPMRC M/H P/B RED 1NC SHORT
Catalog Description: Explosionproof Non-Illuminated Pushbutton, Type Mushroom, Short Barrel, Operation Type Momentary, Contact Configuration 1NC, Contact Rating 600 VAC 10 Ampere, Cap/Lens Color Red, Enclosure Class I Div 1 and 2 Group B C D, Class II Div 1 and 2 Group E F G, Class III, NEMA 4/7BCD/9EFG, Approval UL 1203/E77137, CSA C22.2, Constructional Feature Dust-Ignitionproof, Explosionproof, Application Hazardous Location
AEPMRC Application
Hazardous Location ApplicationsAEPMRC Item Features
- All push buttons and selector switches have stainless steel shafts
AEPMRC Standards
Buy American Act Compliant|CSA C22.2|NEC Compliant|CEC Class I Div 1 and 2, Groups B C D Class II, Div 1 and 2, Groups E, F, G Class III|UL 1203 No. E77137SKU #2443692Part Number #AEPMRCUNSPSC39122216UPC00781381914758
Image provided may only be a representation of final product and may include optional equipment
