Part Number # AEPTGB
SKU # 2443694
Appleton AEPTGB Key Features
| Brand: | Appleton |
|---|---|
| Part Number # : | AEPTGB |
| SKU #: | 2443694 |
| Contact Configuration: | 2NO |
| Contact Rating: | 10 A at 600 V AC, 10 A at 600 VAC |
| Enclosure Type: | NEMA 4/7B/7C/7D/9E/9F/9G |
| Environmental Conditions: | -40 to 55 deg C |
| Size: | 3/4 in |
| Type: | Short Barrel |
| Connection type: | NPSM |
| Country of origin: | US |
| Manufacturer Name: | Emerson Electric |
| UNSPSC: | 39122216 |
| UPC: | 00781381915458 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Appleton AEPTGB
Brand: Appleton
Part Number: AEPTGB
Appleton® Illuminated Pushbutton, Short Barrel, 3/4 in Size, 2NO Contact Configuration, Momentary Contact, 10 A at 600 VAC Contact, NPSM Connection, NEMA 4/7B/7C/7D/9E/9F/9G Enclosure, Green, Environmental Conditions: -40 to 55 deg C
Additional Description: APLE-AEPTGB LIGHTED P/B GREEN 2NO SHORT
Catalog Description: Explosionproof Illuminated Pushbutton, Type Short Barrel, Constructional Feature Explosionproof, Dust-Ignitionproof, Contact Rating 600 VAC 10 Ampere, Operation Type Momentary, Contact Configuration 2NO, Cap/Lens Color Green, Enclosure Class I Div 1 and 2 Group B C D, Class II Div 1 and 2 Group E F G, Class III, NEMA 4/7BCD/9EFG, Approval UL 1203/E77137, CSA C22.2, Connection Size 3/4 Inch NPSM, Application Hazardous Location
AEPTGB Application
Hazardous Location ApplicationsAEPTGB Item Features
- All push buttons and selector switches have stainless steel shafts
AEPTGB Standards
Buy American Act Compliant|NEC Compliant|CEC Class I Div 1 and 2 Groups B C D, Class II Div 1 and 2 Groups E F G, Class IIISKU #2443694Part Number #AEPTGBUNSPSC39122216UPC00781381915458

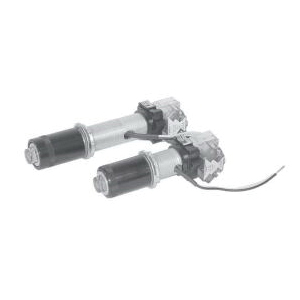

Image provided may only be a representation of final product and may include optional equipment
