Part Number # AESS22KMH
SKU # 2444099
Appleton AESS22KMH Key Features
| Brand: | Appleton |
|---|---|
| Part Number # : | AESS22KMH |
| SKU #: | 2444099 |
| Cam Code: | 2 |
| Contact Configuration: | 1NO |
| Contact Rating: | 10 A at 600 V AC, 10 A at 600 VAC |
| Enclosure Type: | NEMA 4/7B/7C/7D/9E/9F/9G |
| Environmental Conditions: | Hazardous Location |
| Number of Positions: | 2 |
| Operator Type: | Keyed |
| Series: | ACSEW |
| Throw: | Left to Right |
| Type: | Short Bushing |
| Country of origin: | US |
| Material: | Copper-Free Aluminum |
| Manufacturer Name: | Emerson Electric |
| UNSPSC: | 39122217 |
| UPC: | 00781381915748 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Appleton AESS22KMH
Brand: Appleton
Part Number: AESS22KMH
Appleton® Non-Illuminated Selector Switch, Short Bushing, Series: ACSEW, 1NO Contact Configuration, 10 A at 600 VAC Contact, Keyed/Maintained Operator, 2 Positions, Left to Right Throw, Cam Code: 2, NEMA 4/7B/7C/7D/9E/9F/9G Enclosure, Copper-Free Aluminum, Environmental Conditions: Hazardous Location
Additional Description: APLE-AESS22KMH 2 POS. SEL. SW/M KEY SHORT
Catalog Description: Explosionproof Non-Illuminated Selector Switch, Type Key, Short Bush, Contact Rating 600 VAC 10 Ampere, Operation Type Maintained, Contact Configuration 1NO, Number of Positions 2, Throw Left-Right, Enclosure Material Copper-Free Aluminum, Enclosure Class I Div 1 and 2 Group B C D, Class II Div 1 and 2 Group E F G, Class III, NEMA 4/7BCD/9EFG, Approval UL 1203/E77137, CSA C22.2, Constructional Feature Explosionproof, Application Hazardous Location, Number of Cam Location 2
AESS22KMH Item Features
- Key removable from one field selectable position only
AESS22KMH Standards
ATEX and IECEx Zone 1 and 2-21 and 22|Ex II 2 GD IP66|IK10|Buy American Act Compliant|CSA C22.2NEC/CEC Class I Division 1 and 2 Group B C D/Class II Division 1 and 2 Group E F G/Class III|UL 1203/E77137SKU #2444099Part Number #AESS22KMHUNSPSC39122217UPC00781381915748

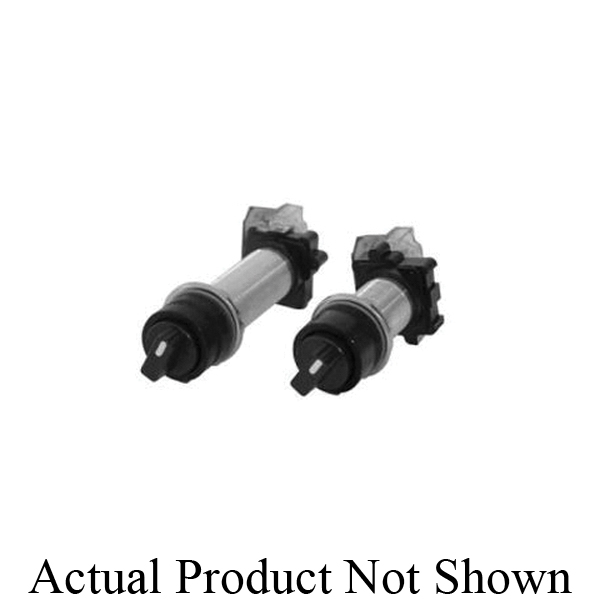

Image provided may only be a representation of final product and may include optional equipment
