Part Number # AEXMSE
SKU # 2463595
AEXMSE
Appleton AEXMSE
Part Number # AEXMSE
SKU # 2463595
Appleton AEXMSE Key Features
| Brand: | Appleton |
|---|---|
| Part Number # : | AEXMSE |
| SKU #: | 2463595 |
| Dimensions: | 12-3/8 in H x 8-1/2 in W x 7-1/8 in D |
| Enclosure Type: | NEMA 3/3R/4/4X/7C/7D/9E/9F/9G |
| Series: | AEXMS |
| UNSPSC: | 39121521 |
| UPC: | 00781381913133 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Appleton AEXMSE
Brand: Appleton
Part Number: AEXMSE
Appleton® Motor Starter, Series: AEXMS, 120/208/240/480/600 VAC/120/230 VDC, 3 hp, 5 hp Motor, 3 Poles, 3 Phase, NEMA 1/3/3R/4/4X/7CD/9EFG, Starting Modes: Manual, Cast Aluminum, 12-3/8 in H x 8-1/2 in W x 7-1/8 in D
Additional Description: APLE-AEXMSE EXMS-1-3 SQD 2510 TC03
Catalog Description: Manual Motor Starter, Type Full Voltage Starter, Constructional Feature Explosionproof, Dust Ignitionproof, Watertight, Motor/Line Voltage 120/208/240/480/600 VAC, 120/230 VDC, Power Rating 3 HP at 120 VAC, 3 HP at 208/240 VAC, 5 HP at 480/600 VAC, Number of Poles 3, Number of Phases 3, Material Cast Aluminum, Size NEMA 1, Enclosure Type Class I Div 1 and 2 Group B C D, Class II Div 1 and 2 Group E F G, Class III, NEMA 3/3R/4/4X/7C/7D/9E/9F/9G, Approval UL
AEXMSE Application
For hazardous locationsAEXMSE Item Features
- Rugged, compact enclosures supplied with Square D or Cutler-Hammer manual motor starters using three overloads
- Covers secure with stainless steel hex head bolts
- Four cast on mounting feet allow easy rack or individual mounting
- Enclosures have standard conduit openings at top and bottom
- Operating levers are positive operating and can be locked in the on/off position
- NEMA Size 1
AEXMSE Standards
Buy American Act Compliant|UL 508, 698, 1203, E76550 Listed|NEC Class I, Division 1, 2, Groups C, D Class II, Division 1, 2, Groups E, F, G Class III CertifiedSKU #2463595Part Number #AEXMSEUNSPSC39121521UPC00781381913133

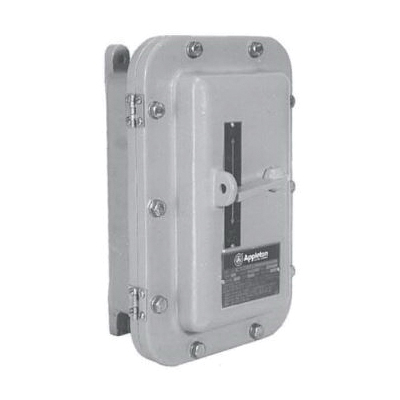

Image provided may only be a representation of final product and may include optional equipment
