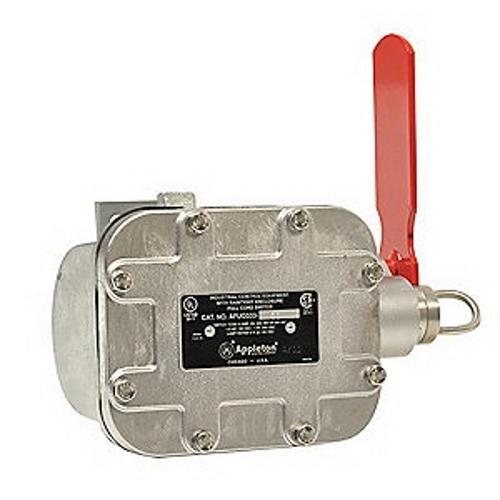

Appleton AFU033305 Conveyor Control Switch
Part Number # AFU033305
SKU # 2196573

AFU033305
Appleton AFU033305 Conveyor Control Switch
Part Number # AFU033305
SKU # 2196573
Appleton AFU033305 Key Features
| Brand: | Appleton |
|---|---|
| Part Number # : | AFU033305 |
| SKU #: | 2196573 |
| Amperage Rating: | 15/0.4 A |
| Contact Rating: | 15 A at 120/240/480/600 V AC/0.8 A at 115 V DC/0.4 A at 230 V DC |
| Dimensions: | 7.88 in W x 9.75 in H |
| Enclosure: | NEMA 3/3R/4/4X/12 |
| Environmental Conditions: | -40 to 66 deg C Temperature |
| Indicator: | Flag Arm |
| Series: | AFU |
| Type: | Right Hand Single End |
| UNSPSC: | 39122239 |
| UPC: | 00781381741132 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Prices are in USD. Orders shipped to Canada may be subject to duties, taxes and brokerage fees, collected by the carrier on delivery.
Appleton AFU033305 Conveyor Control Switch
Brand: Appleton
Part Number: AFU033305
Appleton Conveyor Control Switch, Right Hand Single End, Series: AFU, 600 V AC/230 V DC, 15/0.4 A, 2NO-2NC, 15 A at 120/240/480/600 V AC/0.8 A at 115 V DC/0.4 A at 230 V DC Contact, Flag Arm, NEMA 3/3R/4/4X/12 Enclosure, Aluminum, Environmental Conditions: -40 to 66 deg C Temperature, 7.88 in W x 9.75 in H
Additional Description: APLE-AFU033305 PULL CORD SW-ORD.R2T 15# TCDB
Catalog Description: AFU Series Single End Right Emergency Cable Pull Switch, Material: Cast Aluminum Case, Enclosure: NEMA 3, 4, 4X, 12, Contact Configuration: NO/NC-DB, TCDB, Contact Rating: AC: 15 AMP At 120, 240, 480, 600 VAC, DC: 0.8 AMP At 115 VDC, 0.
AFU033305 Application
Used to the control circuit of magnetic motor starters to shut down motor driven conveyors or other machineryAFU033305 Item Features
- Rugged torsion spring for positive actuation of flag arm
- Stainless steel bushing may be easily reversed to increase or decrease actuation force
- Maximum distance between switches should not exceed 61 m
- Two 1 in conduit openings (top and bottom)
- Emergency stop or normal stop switch for conveyor lines, cranes, unloaders, bulk handling systems
- Steel with red epoxy paint flag arm
- Stainless steel actuator shaft, retaining ring, clevis loop and torsion springs
- Peened enclosure
AFU033305 Standards
UL 508/698/1203/E164877/E10449 ListedSKU #2196573Part Number #AFU033305UNSPSC39122239UPC00781381741132
Image provided may only be a representation of final product and may include optional equipment
