Part Number # AJA20034150
SKU # 2311744

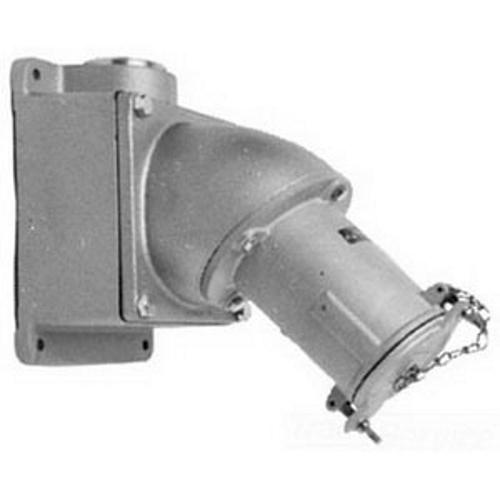

Image provided may only be a representation of
final product and may include optional equipment
AJA20034150
Appleton AJA20034150 Pin and Sleeve Receptacle
Part Number # AJA20034150
SKU # 2311744
Appleton AJA20034150 Key Features
| Brand: | Appleton |
|---|---|
| Part Number # : | AJA20034150 |
| SKU #: | 2311744 |
| Amperage Rating: | 200, 200 A |
| Cord Diameter: | 0.875 to 1.906, 0.875 to 1.906 in |
| Dimensions: | 13-1/2 in H x 8 in W x 14-1/4 in D |
| Frequency Rating: | 50 to 400, 50 to 400 Hz |
| Hub Size: | 1-1/2, 1-1/2 in |
| NEMA Rating: | NEMA 3/3R/4/4X |
| Number of Poles: | 4 |
| Number of Wires: | 3 |
| Temperature Rating (Degrees F): | -40 to 225, -40 to 225 deg F |
| Terminal Type: | Pressure Wire, Pressure Wired |
| Type: | 3-Phase Grounding Style 2 |
| Country of origin: | MX |
| Material: | Copper Free Aluminum |
| Manufacturer Name: | Emerson Electric |
| UNSPSC: | 39121406 |
| UPC: | 00781381131049 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Appleton AJA20034150 Pin and Sleeve Receptacle
Brand: Appleton
Part Number: AJA20034150
Appleton Powertite Pin and Sleeve Receptacle, 3-Phase Grounding Style 2, 600/250 VAC/VDC, 200 A, 50 to 400 Hz Frequency, 4 Pole, 3 Wires, NEMA 3/3R/4/4X NEMA Rating, 1-1/2 in Hub, 0.875 to 1.906 in Diameter Cord, -40 to 225 deg F, Pressure Wire Terminal, Copper Free Aluminum, 13-1/2 in H x 8 in W x 14-1/4 in D Dimensions
Additional Description: APLE-AJA20034150 RECP & MTG BOX 200A 3W4P
Catalog Description: Powertite Grounding Style 2 Receptacle With AJA Mounting Box, Number Of Poles: 4, Number Of Wires: 3, Wire Size: 2/0 AWG - 250 MCM, Amperage Rating: 200 AMP, Voltage Rating: 600 VAC At 50 - 400 HZ, 250 VDC, Phase: 3 PH, Material: Copper
AJA20034150 Application
AP20034CD Plug, Motor Generator Units, Welders, Pumps, Compressors, Cellular Relay Stations and Similar Apparatus, Shipping Docks, Ports, Other Ship to Shore and Rough Usage Construction ApplicationsAJA20034150 Item Features
- Shell and extra pole grounding style 2
- Natural finish glass filled polyester insulating blocks
- 11/16 in dia wire recess
- Designed to supply power to portable or fixed electrical equipment
- Suitable for use in locations where a weatherproof enclosure is required
- Weatherproof spring door, raintight clamp cover
AJA20034150 Standards
UL 1682, UL 1686, UL 50E; UL Listed: E145916, E145917; CSA Standard: C22.2 No. 182.1; CSA Certified: 065179; NEMA FB11SKU #2311744Part Number #AJA20034150UNSPSC39121406UPC00781381131049
