Part Number # AJA20034200RS
SKU # 2219925

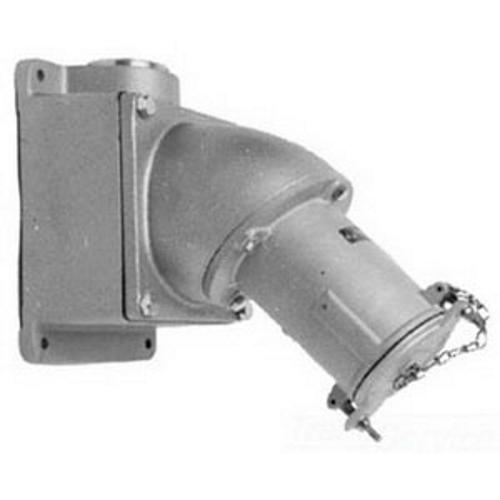

Image provided may only be a representation of
final product and may include optional equipment
AJA20034200RS
Appleton AJA20034200RS Pin and Sleeve Receptacle
Part Number # AJA20034200RS
SKU # 2219925
Appleton AJA20034200RS Key Features
| Brand: | Appleton |
|---|---|
| Part Number # : | AJA20034200RS |
| SKU #: | 2219925 |
| Amperage Rating: | 200, 200 A |
| Cord Diameter: | 1-7/8 to 2-1/2, 1-7/8 to 2-1/2 in |
| Dimensions: | 13-1/2 in H x 8 in W x 14-1/4 in D |
| Frequency Rating: | 50 to 400, 50 to 400 Hz |
| Hub Size: | 2, 2 in |
| NEMA Rating: | NEMA 3/3R/4/4X |
| Number of Poles: | 4 |
| Number of Wires: | 3 |
| Temperature Rating (Degrees F): | -40 to 225, -40 to 225 deg F |
| Terminal Type: | Pressure Wire, Pressure Wired |
| Type: | 3-Phase Grounding Style 2 Reverse Service |
| Country of origin: | MX |
| Material: | Copper Free Aluminum |
| Manufacturer Name: | Emerson Electric |
| UNSPSC: | 39121406 |
| UPC: | 00781381295215 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Appleton AJA20034200RS Pin and Sleeve Receptacle
Brand: Appleton
Part Number: AJA20034200RS
Appleton Powertite Pin and Sleeve Receptacle, 3-Phase Grounding Style 2 Reverse Service, 600/250 VAC/VDC, 200 A, 50 to 400 Hz Frequency, 4 Pole, 3 Wires, NEMA 3/3R/4/4X NEMA Rating, 2 in Hub, 1-7/8 to 2-1/2 in Diameter Cord, -40 to 225 deg F, Pressure Wire Terminal, Copper Free Aluminum, 13-1/2 in H x 8 in W x 14-1/4 in D Dimensions
Additional Description: APLE-AJA20034200RS 200A RECEPT & BOX ASS'LY
Catalog Description: Powertite Grounding Style 2 Receptacle With AJA Mounting Box, Number Of Poles: 4, Number Of Wires: 3, Wire Size: 2/0 AWG - 250 MCM, Amperage Rating: 200 AMP, Voltage Rating: 600 VAC At 50 - 400 HZ, 250 VDC, Phase: 3 PH, Material: Co
AJA20034200RS Application
AP20034E Plug, Motor Generator Units, Welders, Pumps, Compressors, Cellular Relay Stations and Similar Apparatus, Shipping Docks, Ports, Other Ship to Shore and Rough Usage Construction ApplicationsAJA20034200RS Item Features
- Shell and extra pole grounding style 2
- Natural finish glass filled polyester insulating blocks
- 11/16 in dia wire recess
- Designed to supply power to portable or fixed electrical equipment
- Suitable for use in locations where a weatherproof enclosure is required
- Weatherproof spring door, raintight clamp cover
AJA20034200RS Standards
UL 1682, UL 1686, UL 50E; UL Listed: E145916, E145917; CSA Standard: C22.2 No. 182.1; CSA Certified: 065179; NEMA FB11SKU #2219925Part Number #AJA20034200RSUNSPSC39121406UPC00781381295215
