Part Number # AJA40034400RS
SKU # 2203267

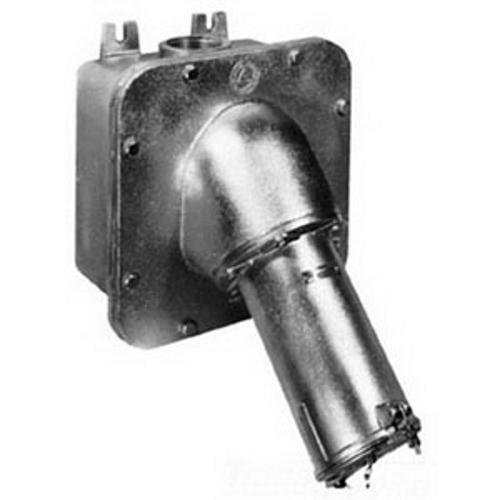

Image provided may only be a representation of
final product and may include optional equipment
AJA40034400RS
Appleton AJA40034400RS Pin and Sleeve Receptacle
Part Number # AJA40034400RS
SKU # 2203267
Appleton AJA40034400RS Key Features
| Brand: | Appleton |
|---|---|
| Part Number # : | AJA40034400RS |
| SKU #: | 2203267 |
| Amperage Rating: | 400, 400 A |
| Cord Diameter: | 1.875 to 2.5, 1.875 to 2.5 in |
| Frequency Rating: | 50 to 400, 50 to 400 Hz |
| Hub Size: | 4, 4 in |
| NEMA Rating: | NEMA 3/3R/4 |
| Number of Poles: | 4 |
| Number of Wires: | 3 |
| Temperature Rating (Degrees F): | -40 to 225, -40 to 225 deg F |
| Terminal Type: | Solder Wire |
| Type: | 3-Phase Grounding Style 2 Reverse Service |
| Country of origin: | MX |
| Material: | Copper Free Aluminum |
| Manufacturer Name: | Emerson Electric |
| UNSPSC: | 39121406 |
| UPC: | 00781381324779 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Appleton AJA40034400RS Pin and Sleeve Receptacle
Brand: Appleton
Part Number: AJA40034400RS
Appleton Powertite Pin and Sleeve Receptacle, 3-Phase Grounding Style 2 Reverse Service, 600/250 VAC/VDC, 400 A, 50 to 400 Hz Frequency, 4 Pole, 3 Wires, NEMA 3/3R/4 NEMA, 4 in Hub, 1.875 to 2.5 in Diameter Cord, -40 to 225 deg F, Solder Wire Terminal, Copper Free Aluminum
Additional Description: APLE-AJA40034400RS POWERTITE 400A RECEPTACLE
Catalog Description: Powertite Grounding Style 2 Receptacle With AJA Mounting Box, Number Of Poles: 4, Number Of Wires: 3, Wire Size: 400 - 1000 MCM, Amperage Rating: 400 AMP, Voltage Rating: 600 VAC At 50 - 400 HZ, 250 VDC, Phase: 3 PH, Material: Coppe
AJA40034400RS Application
AP40034E Plug, Motor Generator Units, Welders, Pumps, Compressors, Cellular Relay Stations and Similar Apparatus, Shipping Docks, Ports, Other Ship to Shore and Rough Usage Construction ApplicationsAJA40034400RS Item Features
- Shell and extra pole grounding style 2
- Natural finish glass filled polyester insulating blocks
- 0.84 in dia wire recess
- Designed to supply power to portable or fixed electrical equipment
- Suitable for use in locations where a weatherproof enclosure is required
- Has feed-through 4 in tapped openings, supplied with one 4 in to 3 in reducer and one 4 in close-up plug
AJA40034400RS Standards
UL 1682, UL 1686, UL 50E; UL Listed: E145916, E145917; CSA Standard: C22.2 No. 182.1; CSA Certified: 065179; NEMA FB11SKU #2203267Part Number #AJA40034400RSUNSPSC39121406UPC00781381324779
