Part Number # AMLHL1CF6BU
SKU # 2466437
AMLHL1CF6BU
Appleton AMLHL1CF6BU
Part Number # AMLHL1CF6BU
SKU # 2466437
Appleton AMLHL1CF6BU Key Features
| Brand: | Appleton |
|---|---|
| Part Number # : | AMLHL1CF6BU |
| SKU #: | 2466437 |
| Amperage Rating: | 1.52/0.67/1.02/0.57 A |
| Color Rendering Index (CRI): | 70 |
| Dimensions: | 18.67 in H x 15.94 in W x 5.13 in D |
| Enclosure Type: | NEMA 3R/4/4X/IP66/IP67 |
| Fixture Wattage: | 180 W |
| Housing Finish: | Architectural Bronze Polyester Coated |
| Lamp Type: | LED |
| Lamp Wattage: | 1000 W |
| Lens Type: | Impact-Resistant Frosted Glass |
| Light Color: | Cool White |
| Lumens: | 24000 Lumens |
| Series: | AMLH |
| Type: | Enclosed Gasketed |
| Country of origin: | MX |
| Housing material: | Aluminum |
| Mounting type: | Yoke |
| Manufacturer Name: | Emerson Electric |
| UNSPSC: | 39112102 |
| UPC: | 00078138108786 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Appleton AMLHL1CF6BU
Brand: Appleton
Part Number: AMLHL1CF6BU

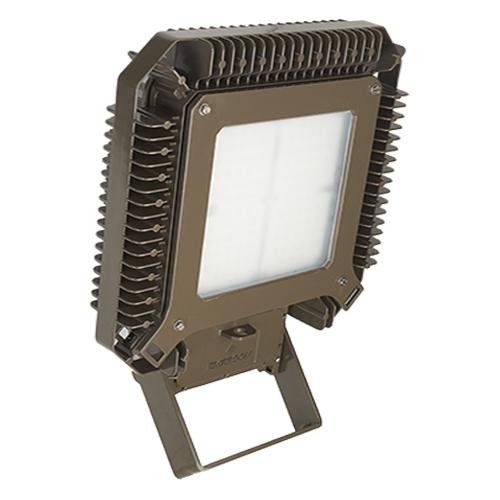

Appleton® Areamaster™ II Floodlight Fixture, Enclosed Gasketed, Series: AMLH, 120/277 VAC, 170/300 VDC, 180 W Fixture, 1.52/0.67/1.02/0.57 A, LED Lamp, 1000 W Lamp, 60000 hr Average Life, Cool White Light, 5000 K Color Temperature, 70 CRI, Impact-Resistant Frosted Glass Lens, 24000 Lumens, NEMA 3R/4/4X/IP66/IP67 Enclosure, Yoke Mounting, Aluminum Housing Material, Architectural Bronze Polyester Coated Housing Finish, 18.67 in H x 15.94 in W x 5.13 in D Dimensions
Additional Description: APLE-AMLHL1CF6BU AMLED HL 24KLM CW FRS 7X7 BU
Catalog Description: AREAMASTER HIGH LUMEN FLOOD, ENCLOSED AND GASKETED, 24K LUMEN, 5000K CCT, FROSTED GLASS, NEMA 7X7, 120-277VAC, 170-300 VDC
AMLHL1CF6BU Application
Oil and Gas Refineries, Petrochemical Plants, Foundries, Drilling Rigs, Pulp and Paper Mills, Food and Beverage Processing Facilities, Loading Docks, Power Plants, Water and Wastewater Treatment FacilitiesAMLHL1CF6BU Item Features
- Three lumen outputs provide up to 38000 lumens
- Choice of optics for optimal light distribution in a variety of applications
- Separate field wiring compartment with screw terminal block for easy and secure connection
- Two 3/4 in NPT entries provided
- Yoke bracket is designed to accommodate traditional Areamaster brackets and slip fitters for easy retrofit
- Rugged and compact housing with superior thermal design translates to long luminaire life
- Heavy duty, high temperature silicone rubber gaskets
- Thermal shock and impact resistant clear or frosted glass lens
- Standard 6 kV surge protection
- Captive fasteners secure one-piece lens
- Field replaceable LED driver and lens cover
AMLHL1CF6BU Standards
RoHS Compliant|CSA C22.2 No.250.0|C22.2 No.137|cCSAus 164460|NEC|CEC|IECEx|ATEX Certified|UL 844/1598/8750SKU #2466437Part Number #AMLHL1CF6BUUNSPSC39112102UPC00078138108786
Image provided may only be a representation of final product and may include optional equipment
