Part Number # AMLHL2CG5BU
SKU # 2338669
Image Disclaimers Message
AMLHL2CG5BU

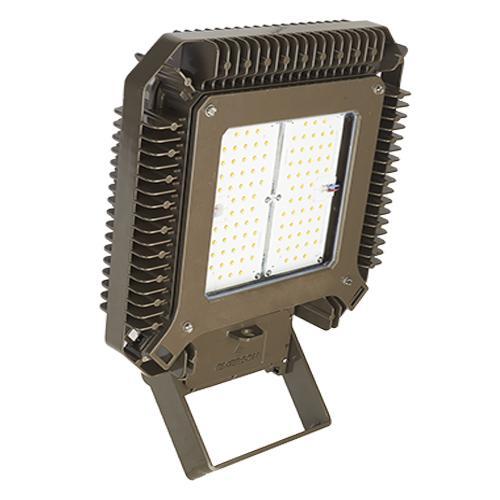

Appleton AMLHL2CG5BU II Floodlight Fixture
Part Number # AMLHL2CG5BU
SKU # 2338669
$3150.07 / Each
Typical price:$4284.09 / Each
Appleton AMLHL2CG5BU Key Features
| Brand: | Appleton |
|---|---|
| Part Number # : | AMLHL2CG5BU |
| SKU #: | 2338669 |
| Amperage Rating: | 1.94/0.88/1.3/0.72, 1.94/0.88/1.3/0.72 A |
| Color Rendering Index (CRI): | 70 |
| Dimensions: | 18.67 in H x 15.94 in W x 5.13 in D |
| Enclosure Type: | NEMA 3R/4/4X/IP66/IP67 |
| Fixture Wattage: | 225, 225 W |
| Housing Finish: | Architectural Bronze Polyester Coated |
| Lamp Type: | LED |
| Lamp Wattage: | 1000 to 1500, 1000 to 1500 W |
| Lens Type: | Impact Resistant Clear Glass, Impact-Resistant Glass |
| Light Color: | Cool White |
| Lumens: | 30000, 30000 Lumens |
| Series: | AMLH |
| Type: | Enclosed Gasketed |
| Country of origin: | MX |
| Housing material: | Aluminum |
| Mounting type: | Yoke |
| Manufacturer Name: | Emerson Electric |
| UNSPSC: | 39112102 |
| UPC: | 00781381602815 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$3150.07 / Each
Typical price:$4284.09 / Each
Quantity:
- Appleton Areamaster II Floodlight Fixture, Enclosed Gasketed, Series: AMLH, 120/277 VAC, 170/300 VDC, 225 W Fixture, 1.94/0.88/1.3/0.72 A, LED Lamp, 1000 to 1500 W Lamp, 60000 hr Average Life, Cool White Light, 5000 K Color Temperature, 70 CRI, Impact-Resistant Glass Lens, 30000 Lumens, NEMA 3R/4/4X/IP66/IP67 Enclosure, Yoke Mounting, Aluminum Housing Material, Architectural Bronze Polyester Coated Housing Finish, 18.67 in H x 15.94 in W x 5.13 in D Dimensions
AMLHL2CG5BU Application
Oil and Gas Refineries, Petrochemical Plants, Foundries, Drilling Rigs, Pulp and Paper Mills, Food and Beverage Processing Facilities, Loading Docks, Power Plants, Water and Wastewater Treatment FacilitiesAMLHL2CG5BU Item Features
- Three lumen outputs provide up to 38000 lumens
- Choice of optics for optimal light distribution in a variety of applications
- Separate field wiring compartment with screw terminal block for easy and secure connection
- Two 3/4 in NPT entries provided
- Yoke bracket is designed to accommodate traditional Areamaster brackets and slip fitters for easy retrofit
- Rugged and compact housing with superior thermal design translates to long luminaire life
- Heavy duty, high temperature silicone rubber gaskets
- Thermal shock and impact resistant clear or frosted glass lens
- Standard 6 kV surge protection
- Captive fasteners secure one-piece lens
- Field replaceable LED driver and lens cover
AMLHL2CG5BU Standards
RoHS Compliant|PROP65: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.govSKU #2338669Part Number #AMLHL2CG5BUUNSPSC39112102UPC00781381602815
