Appleton AP20023ERS

Name: Appleton AP20023ERS
Brand: Appleton
SKU: 2462741
Price: 1845.35 USD
Availability: OutOfStock

Part Number # AP20023ERS

SKU # 2462741

$1845.35 / Each

Appleton AP20023ERS Key Features

Brand:	Appleton
Part Number # :	AP20023ERS
SKU #:	2462741
Dimensions:	11.94 in L x 6.44 in W
Type:	1-Phase Grounding Style 2 Weatherproof
UNSPSC:	39121402
UPC:	00781381295390

Buy Now Pay Later

Get 30 days to pay with Net 30 Terms. Apply Now.

$1845.35 / Each

Quantity:

Appleton AP20023ERS

Brand: Appleton

Part Number: AP20023ERS

Appleton Powertite Pin and Sleeve Plug, 1-Phase Grounding Style 2 Weatherproof, Series: AP Series, 250 V AC/600 V DC, 200 A, 50/400 Hz Frequency, 3 Pole, 2 Wires, NEMA 3/3R/4/4X NEMA Rating, -40 to 225 deg F, Pressure Wire Terminal, Copper Free Aluminum, 11.94 in L x 6.44 in W Dimensions

Additional Description: APLE-AP20023ERS 200A RS PLUG ASSEM 3P S2 2.500

Catalog Description: Pin and Sleeve Plug, Type Compressor, Motor Generator Unit, Polarized, Pump, Reverse Service, Welding, Spring Door, Constructional Feature Weatherproof, Voltage Rating 600 VAC/250 VDC 1 Phase at 50 to 400 Hz, Current Rating 200 Ampere, Number of Poles 3, Number of Wires 2, Grounding Style 2, Shell, Extra Pole, Minimum Cable Outer Diameter 1.875 Inch, Maximum Cable Outer Diameter 2.5 Inch, Material Epoxy Powder Coated Copper-Free Aluminum, Approval UL 1682/1686/50E/ E145916/E145917, CSA C22.2

AP20023ERS Application

Motor Generator Units, Welders, Pumps, Compressors, Cellular Relay Stations, Shipping Docks, Ports, Ship to Shore Applications and Rough Usage Construction Applications

AP20023ERS Item Features

Shell and extra pole grounding style 2
Designed to supply power to portable or fixed electrical equipment
Insulating blocks provide greatest dielectric and mechanical strength and lowest arc tracking
Natural finish glass filled polyester insulating blocks
0.687 in dia wire recess
Plug and connector body combination is NEMA 4X rated when wing nuts are fully tightened on connector body
Locking screw and slot prevents plug cable collar from "backing off"
Controlled length contacts ensure that ground makes first and breaks last for added safety
Contacts exert constant pressure along entire contact surface and provide electrical continuity
Neoprene bushing compressed by cable collar prevents entrance of water, bushing is highly resistant to hydrocarbon deterioration and is self extinguishing

AP20023ERS Standards

UL 1682|UL 1686|UL 50E File No. E145916/E145917|CSA C22.2

SKU #2462741

Part Number #AP20023ERS

UNSPSC39121402

UPC00781381295390

: Appleton AP20023ERS Catalog
Appleton AP20023ERS Specification Sheet

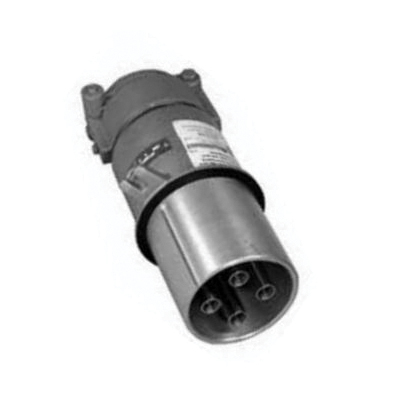

Image provided may only be a representation of final product and may include optional equipment
