Part Number # AP20034E
SKU # 2199094
Image Disclaimers Message
AP20034E

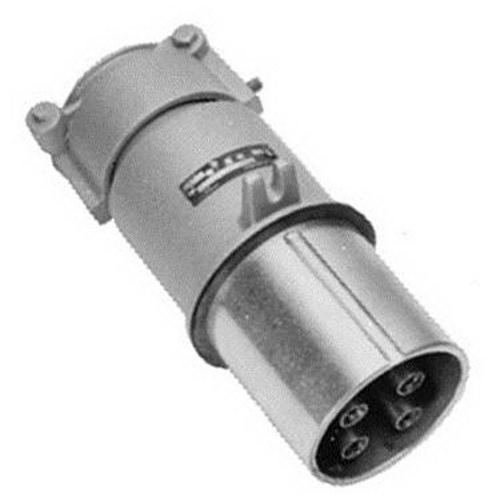

Appleton AP20034E Pin and Sleeve Plug
Part Number # AP20034E
SKU # 2199094
$1457.15 / Each
Appleton AP20034E Key Features
| Brand: | Appleton |
|---|---|
| Part Number # : | AP20034E |
| SKU #: | 2199094 |
| Amperage Rating: | 200, 200 A |
| Dimensions: | 11.94 in L x 6.81 in W |
| Frequency Rating: | 50/400, 50/400 Hz |
| NEMA Rating: | NEMA 3/3R/4/4X |
| Number of Poles: | 4 |
| Number of Wires: | 3 |
| Series: | AP Series |
| Temperature Rating (Degrees F): | -40 to 225, -40 to 225 deg F |
| Terminal Type: | Pressure Wire, Pressure Wired |
| Type: | 3-Phase Grounding Style 2 |
| Country of origin: | MX |
| Material: | Copper Free Aluminum |
| Manufacturer Name: | Emerson Electric |
| UNSPSC: | 39121402 |
| UPC: | 00781381131261 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$1457.15 / Each
Quantity:
- Appleton Powertite Pin and Sleeve Plug, 3-Phase Grounding Style 2, Series: AP Series, 250 V AC/600 V DC, 200 A, 50/400 Hz Frequency, 4 Pole, 3 Wires, NEMA 3/3R/4/4X NEMA Rating, -40 to 225 deg F, Pressure Wire Terminal, Copper Free Aluminum, 11.94 in L x 6.81 in W Dimensions
AP20034E Application
ADR20034 Receptacle and ARC20034CD, ARC20034CD Connector Body, Motor Generator Units, Welders, Pumps, Compressors, Cellular Relay Stations, Shipping Docks, Ports, Ship to Shore and Rough Usage Construction ApplicationsAP20034E Item Features
- Shell and extra pole grounding style 2
- Designed to supply power to portable or fixed electrical equipment
- Insulating blocks provide greatest dielectric and mechanical strength and lowest arc tracking
- Natural finish glass filled polyester insulating blocks
- 0.687 in dia wire recess
- Plug and connector body combination is NEMA 4X rated when wing nuts are fully tightened on connector body
- Locking screw and slot prevents plug cable collar from "backing off"
- Controlled length contacts ensure that ground makes first and breaks last for added safety
- Contacts exert constant pressure along entire contact surface and provide electrical continuity
- Neoprene bushing compressed by cable collar prevents entrance of water, bushing is highly resistant to hydrocarbon deterioration and is self extinguishing
AP20034E Standards
UL 1682, UL 1686, UL 50E; UL Listed: E145916, E145917; CSA Standard: C22.2 No. 182.1; CSA Certified: 065179; NEMA FB11SKU #2199094Part Number #AP20034EUNSPSC39121402UPC00781381131261
