Part Number # AP20044EP4
SKU # 2197821
Image provided may only be a representation of
final product and may include optional equipment
AP20044EP4

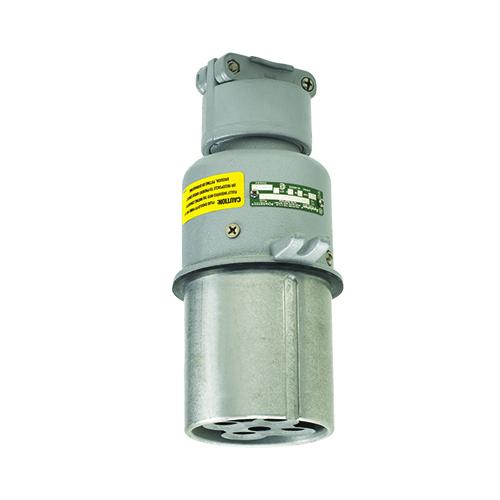

Appleton AP20044EP4 Pin and Sleeve Clamping Ring Plug
Part Number # AP20044EP4
SKU # 2197821
Appleton AP20044EP4 Key Features
| Brand: | Appleton |
|---|---|
| Part Number # : | AP20044EP4 |
| SKU #: | 2197821 |
| Amperage Rating: | 200, 200 A |
| Frequency Rating: | 50/400, 50/400 Hz |
| Number of Poles: | 4 |
| Number of Wires: | 4 |
| Country of origin: | MX |
| Material: | Copper-Free Aluminum |
| Manufacturer Name: | Emerson Electric |
| UNSPSC: | 39121402 |
| UPC: | 00781381925730 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Appleton AP20044EP4 Pin and Sleeve Clamping Ring Plug
Brand: Appleton
Part Number: AP20044EP4
Appleton Pin and Sleeve Clamping Ring Plug, 600 VAC/250 VDC, 200 A, 50/400 Hz, 4 Pole, 4 Wires, Copper-Free Aluminum
Additional Description: APLE-AP20044EP4 200A PLUG ASSY 4P S1 P4
Catalog Description: Pin and Sleeve Plug, Type Compressor, Motor Generator Unit, Polarized, Pump, Welding, Spring Door, Constructional Feature Weatherproof, Voltage Rating 600 VAC/250 VDC 3 Phase at 50 to 400 Hz, Current Rating 200 Ampere, Number of Poles 4, Number of Wires 4, Grounding Style 1, Shell, Minimum Cable Outer Diameter 1.875 Inch, Maximum Cable Outer Diameter 2.500 Inch, Material Epoxy Powder Coated Copper-Free Aluminum, Approval UL 1682/1686/50E/ E145916/E145917, CSA C22.2
AP20044EP4 Application
Compressor, Motor Generator Unit, Polarized, Pump, Welding and Spring DoorAP20044EP4 Item Features
- For 1-7/8 to 2-1/2 in Dia cable
AP20044EP4 Standards
CSA C22.2|UL 1682/1686/50E/E145916/E145917SKU #2197821Part Number #AP20044EP4UNSPSC39121402UPC00781381925730
