Part Number # AP40044ERS
SKU # 2202921
AP40044ERS
Appleton AP40044ERS Pin and Sleeve Plug
Part Number # AP40044ERS
SKU # 2202921
Appleton AP40044ERS Key Features
| Brand: | Appleton |
|---|---|
| Part Number # : | AP40044ERS |
| SKU #: | 2202921 |
| Amperage Rating: | 400, 400 A |
| Dimensions: | 11.94 in L x 6.81 in W |
| Frequency Rating: | 50/400, 50/400 Hz |
| NEMA Rating: | NEMA 3/3R/4/4X |
| Number of Poles: | 4 |
| Number of Wires: | 4 |
| Series: | AP |
| Temperature Rating (Degrees F): | -40 to 225, -40 to 225 deg F |
| Terminal Type: | Solder Wire |
| Type: | 3-Phase Grounding Style 1 |
| Country of origin: | MX |
| Material: | Copper Free Aluminum |
| Manufacturer Name: | Emerson Electric |
| UNSPSC: | 39121402 |
| UPC: | 00781381324915 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Appleton AP40044ERS Pin and Sleeve Plug
Brand: Appleton
Part Number: AP40044ERS
Appleton Powertite Pin and Sleeve Plug, 3-Phase Grounding Style 1, Series: AP, 250/600 VAC/VDC, 400 A, 50/400 Hz, 4 Poles, 4 Wires, NEMA 3/3R/4/4X, -40 to 225 deg F, Solder Wire Terminal, Copper Free Aluminum, 11.94 in L x 6.81 in W
Additional Description: APLE-AP40044ERS 400A RS PLUG ASSY 4W4P S1 I.5D
Catalog Description: Powertite Grounding Style 1 Plug, Number Of Poles: 4, Number Of Wires: 4, Wire Size: 400 - 1000 MCM, Amperage Rating: 400 AMP, Voltage Rating: 600 VAC At 50 - 400 HZ, 250 VDC, Phase: 3 PH, Material: Copperfree (4/10 Of 1 PCT Maximum)
AP40044ERS Application
AR40044 Receptacle and ARC40044E Connector Body, Motor Generator Units, Welders, Pumps, Compressors, Cellular Relay Stations, Shipping Docks, Ports, Ship to Shore and Rough Usage Construction ApplicationsAP40044ERS Item Features
- Shell grounding style 1
- Designed to supply power to portable or fixed electrical equipment
- Insulating blocks provide greatest dielectric and mechanical strength and lowest arc tracking
- Natural finish glass filled polyester insulating blocks
- 0.84 in dia wire recess
- Locking screw and slot prevents plug cable collar from "backing off"
- Controlled length contacts ensure that ground makes first and breaks last for added safety
- Contacts exert constant pressure along entire contact surface and provide electrical continuity
- Neoprene bushing compressed by cable collar prevents entrance of water, bushing is highly resistant to hydrocarbon deterioration and is self extinguishing
AP40044ERS Standards
UL 1682, UL 1686, UL 50E; UL Listed: E145916, E145917; CSA Standard: C22.2 No. 182.1; CSA Certified: 065179; NEMA FB11SKU #2202921Part Number #AP40044ERSUNSPSC39121402UPC00781381324915

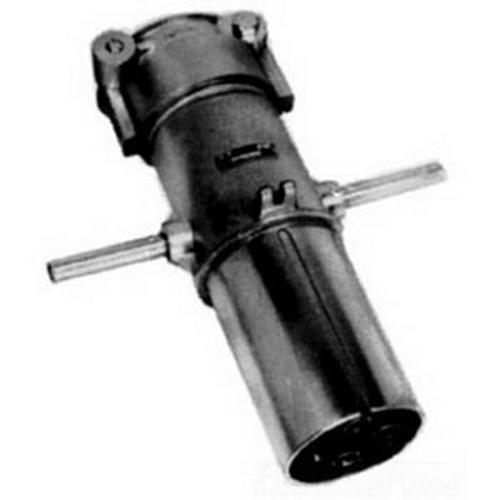

Image provided may only be a representation of final product and may include optional equipment
