Part Number # AP40134FRS
SKU # 2410043
AP40134FRS
Appleton AP40134FRS Powertite Pin And Sleeve Plug
Part Number # AP40134FRS
SKU # 2410043
Appleton AP40134FRS Key Features
| Brand: | Appleton |
|---|---|
| Part Number # : | AP40134FRS |
| SKU #: | 2410043 |
| Amperage Rating: | 400 A |
| Dimensions: | 11.94 in L x 6.81 in W |
| Frequency Rating: | 50/400 Hz |
| NEMA Rating: | NEMA 3/3R/4/4X |
| Number of Poles: | 4 |
| Number of Wires: | 3 |
| Series: | AP |
| Temperature Rating (Degrees F): | -40 to 225 deg F |
| Terminal Type: | Solder Wire |
| Type: | 3-Phase Grounding Style 2 Weatherproof |
| Country of origin: | MX |
| Material: | Copper Free Aluminum |
| Manufacturer Name: | Emerson Electric |
| UNSPSC: | 39121402 |
| UPC: | 00781381324977 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Appleton AP40134FRS Powertite Pin And Sleeve Plug
Brand: Appleton
Part Number: AP40134FRS
Appleton® Powertite® Pin and Sleeve Plug, 3-Phase Grounding Style 2 Weatherproof, Series: AP, 250/600 VAC/VDC, 400 A, 50/400 Hz, 4 Poles, 3 Wires, NEMA 3/3R/4/4X, -40 to 225 deg F, Solder Wire Terminal, Copper Free Aluminum, 11.94 in L x 6.81 in W
Additional Description: APLE-AP40134FRS 400A RS PLUG ASSY 3W4P S2 3.0D
Catalog Description: Pin and Sleeve Clamp Cover Plug, Type Compressor, Motor Generator Unit, Polarized, Pump, Welding, Spring Door, Constructional Feature Weatherproof, Voltage Rating 600 VAC/250 VDC at 50 to 400 Hz, Current Rating 400 Ampere, Number of Poles 4, Number of Wires 3, Grounding Style 2, Shell, Extra Pole, Minimum Cable Outer Diameter 2.500 Inch, Maximum Cable Outer Diameter 3.000 Inch, Material Epoxy Powder Coated Copper-Free Aluminum, Approval UL 1682/1686/50E/ E145916/E145917, CSA C22.2
AP40134FRS Application
AR40134 Receptacle and ARC40134F Connector Body, Motor Generator Units, Welders, Pumps, Compressors, Cellular Relay Stations, Shipping Docks, Ports, Ship to Shore and Rough Usage Construction ApplicationsAP40134FRS Item Features
- Shell and extra pole grounding style 2
- Designed to supply power to portable or fixed electrical equipment
- Insulating blocks provide greatest dielectric and mechanical strength and lowest arc tracking
- Natural finish glass filled polyester insulating blocks
- 1-1/4 in dia wire recess
- Locking screw and slot prevents plug cable collar from "backing off"
- Controlled length contacts ensure that ground makes first and breaks last for added safety
- Contacts exert constant pressure along entire contact surface and provide electrical continuity
- Neoprene bushing compressed by cable collar prevents entrance of water, bushing is highly resistant to hydrocarbon deterioration and is self extinguishing
AP40134FRS Standards
UL 1682|UL 1686|UL 50E File No. E145916/E145917|CSA C22.2 No. 182.1|CSA File No. 065179SKU #2410043Part Number #AP40134FRSUNSPSC39121402UPC00781381324977

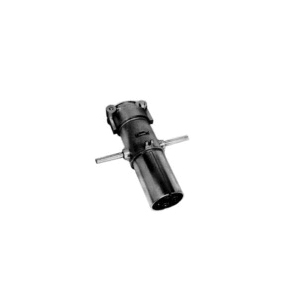

Image provided may only be a representation of final product and may include optional equipment
