Part Number # API3044
SKU # 2266055
API3044
Appleton API3044 Pin and Sleeve Plug Interior
Part Number # API3044
SKU # 2266055
Appleton API3044 Key Features
| Brand: | Appleton |
|---|---|
| Part Number # : | API3044 |
| SKU #: | 2266055 |
| Amperage Rating: | 30, 30 A |
| Finish: | Epoxy Powder Coated |
| Grounding Style: | Shell |
| Number of Poles: | 4 |
| Number of Wires: | 4 |
| Type: | 3-Phase Grounding Style 1 |
| Country of origin: | MX |
| Material: | Copper Free Aluminum |
| Manufacturer Name: | Emerson Electric |
| UNSPSC: | 39121402 |
| UPC: | 00781381165969 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.

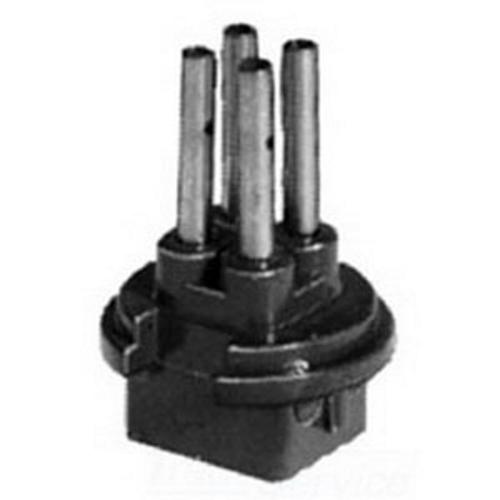

Appleton API3044 Pin and Sleeve Plug Interior
Brand: Appleton
Part Number: API3044
Appleton Powertite Pin and Sleeve Plug Interior, 3-Phase Grounding Style 1, 600/250 VAC/VDC, 30 A, 4 Pole, 4 Wires, Shell Grounding Style, Copper Free Aluminum, Epoxy Powder Coated Finish
Additional Description: APLE-API3044 30A PLUG INTERIOR ASSY 4P S1
Catalog Description: Powertite Grounding Style 1 Plug, Number Of Poles: 4, Number Of Wires: 4, Wire Size: 10 - 6 AWG (Building), 10 - 8 AWG (Extra Flex), Amperage Rating: 30 AMP, Voltage Rating: 600 VAC At 50 - 400 HZ, 250 VDC, Phase: 3 PH, Material: Copperfr
API3044 Application
ARI-3044 Receptacle, Motor Generator Units, Welders, Pumps, Compressors, Cellular Relay Stations, and Similar Apparatus, Shipping Docks, Ports, Other Ship to Shore and Rough Usage Construction ApplicationsAPI3044 Item Features
- Natural finish glass filled polyester insulating blocks
- 9/32 in dia wire recess
- Locking screw and slot prevents plug cable collar from backing Off
API3044 Standards
UL 1682, UL 1686, UL 50E; UL Listed: E145916, E145917; CSA Standard: C22.2 No. 182.1; CSA Certified: 065179; NEMA FB11SKU #2266055Part Number #API3044UNSPSC39121402UPC00781381165969
Image provided may only be a representation of final product and may include optional equipment
