Part Number # APPC57SA
SKU # 2394175
Image Disclaimers Message
Brand: Appleton
APPC57SA

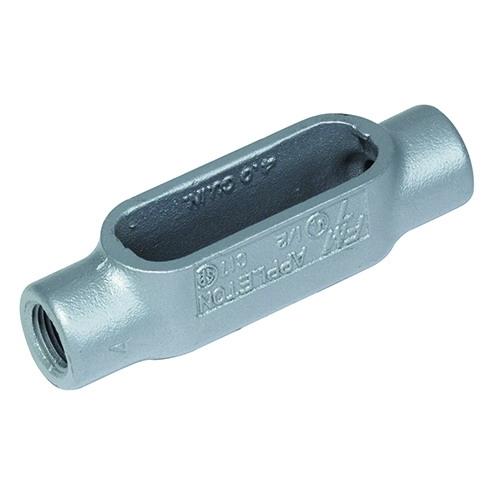

Appleton APPC57SA Unilets Conduit Outlet Body
Part Number # APPC57SA
SKU # 2394175
$69.00 / Each
Appleton APPC57SA Key Features
| Brand: | Appleton |
|---|---|
| Part Number # : | APPC57SA |
| SKU #: | 2394175 |
| Capacity: | 28 cu-in |
| Dimensions: | 8.19 in L x 2.44 in W x 2.56 in H |
| Enclosure: | NEMA FB-1 |
| Finish: | Epoxy Powder Coated |
| Form: | Form 7 |
| Hub Size: | 1-1/2 in |
| Type: | Type-C |
| Connection type: | Tapered FNPT |
| Country of origin: | MX |
| Material: | Cast Aluminum |
| Mounting type: | Surface |
| Manufacturer Name: | Emerson Electric |
| UNSPSC: | 39131708 |
| UPC: | 00781381600637 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$69.00 / Each
Quantity:
- Appleton UNILETS Conduit Outlet Body, Type-C, 1-1/2 in Hub, 2 Hubs, 28 cu-in Capacity, Form 7 Form, NEMA FB-1 Enclosure, Tapered FNPT Connection, Surface Mounting, Cast Aluminum, Epoxy Powder Coated, 8.19 in L x 2.44 in W x 2.56 in H Dimensions
APPC57SA Application
For Rigid Steel/Aluminum and IMC ConduitAPPC57SA Item Features
- Smooth, rounded integral bushing in hubs protects conductor insulation
- Accurately tapped, tapered threads for tight, rigid joints and excellent ground continuity
- Wedge-Lok form-in-place covers with integral gasket are approved for use in wet locations
- Grayloy iron bodies with cast covers and gasket are approved for use in wet locations
- Unique Wedge-Lok clip cover design allows easy removal at any later time, without damaging the conduit body and cover is secured with clips, not screws
- Completely interchangeable with Crouse-Hinds Form 7 bodies, gaskets and covers
- Equivalent FM7 and Form 7 units have identical applications and installation dimensions
- Flat back design provides greater cubic content for easier wire pulling, and more room for splicing
- Fits flush and snug against flat surfaces for more stable installation
- Smooth hub bushings and cover openings protect conductor insulation
- Smooth hub openings allow easy conduit joining
- Pan head cover screws secure cover clips and provide superior screwdriver seating and torque
- Cover screws and clips are captive to prevent loss
- Hub size, body style, compliance data, maximum wire number/size and cubic capacity molded into body
APPC57SA Standards
UL 514A/514B/E2527|C22.2 No. 18.3|CSA 065183SKU #2394175Part Number #APPC57SAUNSPSC39131708UPC00781381600637
