Part Number # APPEYM100
SKU # 2165227
Image Disclaimers Message
Brand: Appleton
APPEYM100

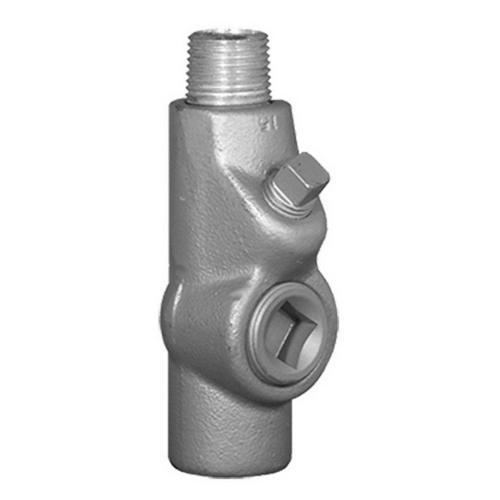

Appleton APPEYM100 Conduit Sealing Fitting
Part Number # APPEYM100
SKU # 2165227
$41.62 / Each
Appleton APPEYM100 Key Features
| Brand: | Appleton |
|---|---|
| Part Number # : | APPEYM100 |
| SKU #: | 2165227 |
| Dimensions: | 5.42 in L x 1-3/4 in W |
| Finish: | Triple Coated |
| Series: | EY Series |
| Size: | 1, 1 in |
| Suitable For Use With: | IMC/Threaded Rigid Metallic Conduit |
| Type: | Dust-Ignitionproof Explosionproof Raintight |
| Country of origin: | MX |
| Material: | Malleable Iron |
| Manufacturer Name: | Emerson Electric |
| UNSPSC: | 39121311 |
| UPC: | 00781381135399 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$41.62 / Each
Quantity:
- Appleton UNILETS Conduit Sealing Fitting, Dust-Ignitionproof Explosionproof Raintight, Series: EY Series, 1 in, For Use With: IMC/Threaded Rigid Metallic Conduit, Malleable Iron, Triple Coated, 5.42 in L x 1-3/4 in W
APPEYM100 Application
For prevent passage of gases, vapors or flames from one portion of conduit system to anotherAPPEYM100 Includes
Removable Male NippleAPPEYM100 Item Features
- Smooth, rounded integral bushing in each hub to protect conductor insulation
- Accurately tapped, tapered NPT threads for tight, rigid joints and ground continuity
- Removable nipple in male sealing fitting may be used interchangeably in top or bottom hub
- Restrict any explosion to the sealed off enclosure
- Required in Class I, Division 1 and 2 locations within 18 in of enclosures containing apparatus that may cause arcs, sparks or high temperatures
- Required in Class I, Division 1 and 2 locations where 2 in or larger conduit enters enclosure, fitting housing terminals, splices or taps
- Required in Class I, Division 1 and 2 locations at the boundary where conduit leaves classified location
- Required in Class I, Division 1 and 2 locations where two or more enclosures are connected by 36 in or less conduit, seal must be located within 18 in of either enclosure
- Required where cables which exceed rate of gas or vapor transmission permitted for seals are used in Class I, Division 2 locations
- 25% fill vertical and horizontal conduit sealing fittings for close turning radius
- Chromate/epoxy powder coated/zinc electroplated finish
APPEYM100 Standards
UL 886|UL 1203|UL File No. E10444|CSA C22.2 No. 30|CSA 065181|Class I, Groups A, B, C, D|Class II, Groups E, F, G|Class IIIAPPEYM100 Warranty
LimitedSKU #2165227Part Number #APPEYM100UNSPSC39121311UPC00781381135399
