Part Number # APPEYM150
SKU # 2214398
Image Disclaimers Message
APPEYM150

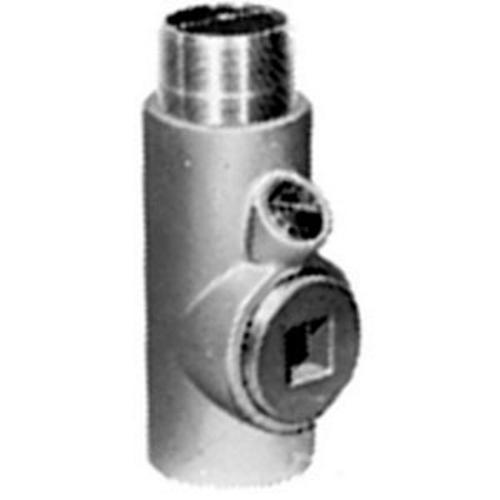

Appleton APPEYM150 Conduit Sealing Fitting
Part Number # APPEYM150
SKU # 2214398
Appleton APPEYM150 Key Features
| Brand: | Appleton |
|---|---|
| Part Number # : | APPEYM150 |
| SKU #: | 2214398 |
| Dimensions: | 6.98 in L x 2.38 in W |
| Finish: | Triple Coated |
| Series: | EY Series |
| Size: | 1-1/2, 1-1/2 in |
| Suitable For Use With: | IMC/Threaded Rigid Metallic Conduit |
| Type: | Dust-Ignitionproof Explosionproof Raintight |
| Country of origin: | MX |
| Material: | Malleable Iron |
| Manufacturer Name: | Emerson Electric |
| UNSPSC: | 39121311 |
| UPC: | 00781381135443 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
- Appleton APPEYM150 Conduit Sealing Fitting - Brand: Appleton - Part Number: APPEYM150 - Appleton UNILETS Conduit Sealing Fitting, Dust-Ignitionproof Explosionproof Raintight, Series: EY Series, 1-1/2 in, For Use With: IMC/Threaded Rigid Metallic Conduit, Malleable Iron, Triple Coated, 6.98 in L x 2.38 in W - Additional Description: APLE-APPEYM150 1-1/2 EXP PROOF SEAL. UNI - Catalog Description: UNILETS EY Series 25 PCT Fill Vertical And Horizontal Conduit Sealing Fitting With Removable Nipple, Size: 1-1/2 IN, Material: Malleable Iron, Finish: Triple-Coat (Zinc Electroplate, Chromate And Epoxy Powder Coat), Connection: Female Thre - APPEYM150 ApplicationFor prevent passage of gases, vapors or flames from one portion of conduit system to another- APPEYM150 IncludesRemovable Male Nipple- APPEYM150 Item Features- Smooth, rounded integral bushing in each hub to protect conductor insulation
- Accurately tapped, tapered NPT threads for tight, rigid joints and ground continuity
- Removable nipple in male sealing fitting may be used interchangeably in top or bottom hub
- Restrict any explosion to the sealed off enclosure
- Required in Class I, Division 1 and 2 locations within 18 in of enclosures containing apparatus that may cause arcs, sparks or high temperatures
- Required in Class I, Division 1 and 2 locations where 2 in or larger conduit enters enclosure, fitting housing terminals, splices or taps
- Required in Class I, Division 1 and 2 locations at the boundary where conduit leaves classified location
- Required in Class I, Division 1 and 2 locations where two or more enclosures are connected by 36 in or less conduit, seal must be located within 18 in of either enclosure
- Required where cables which exceed rate of gas or vapor transmission permitted for seals are used in Class I, Division 2 locations
- 25% fill vertical and horizontal conduit sealing fittings for close turning radius
- Chromate/epoxy powder coated/zinc electroplated finish
 - APPEYM150 StandardsUL 886|UL 1203|UL File No. E10444|CSA C22.2 No. 30|CSA 065181, Class I, Groups B, C, D, Class II, Groups E, F, G, Class III- APPEYM150 WarrantyLimitedSKU #2214398Part Number #APPEYM150UNSPSC39121311UPC00781381135443
