Part Number # APPFSC175A
SKU # 2138184
Image Disclaimers Message
APPFSC175A

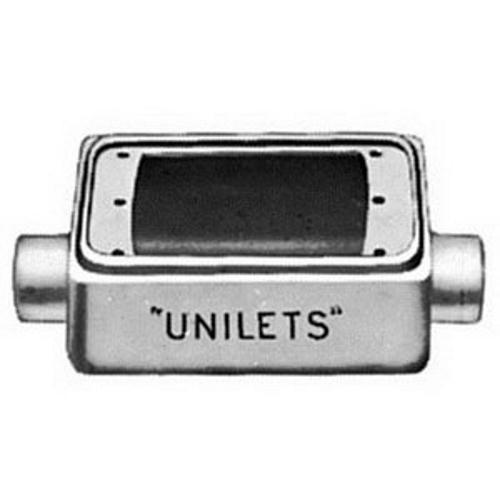

Appleton APPFSC175A Device Box
Part Number # APPFSC175A
SKU # 2138184
$41.39 / Each
Appleton APPFSC175A Key Features
| Brand: | Appleton |
|---|---|
| Part Number # : | APPFSC175A |
| SKU #: | 2138184 |
| Cable Entry Size: | Knockout |
| Capacity: | 25, 25 cu-in |
| Dimensions: | 4.56 in H x 2.81 in W x 2 in D |
| Enclosure Type: | NEMA FB-1 |
| Finish: | Epoxy Powder Coated |
| Hub Size: | 3/4, 3/4 in |
| Hub Style: | Tapered Threaded |
| Number of Gangs: | 1 |
| Number of Knockouts: | 2 |
| Number of Outlets: | 2 |
| Type: | Type FSC Heavy Duty Shallow |
| Country of origin: | MX |
| Material: | Aluminum |
| Manufacturer Name: | Emerson Electric |
| UNSPSC: | 39121315 |
| UPC: | 00781381343756 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$41.39 / Each
Quantity:
- Appleton UNILETS Device Box, Type FSC Heavy Duty Shallow, 2 Outlets, 1 Gangs, 2 Knockouts, 3/4 in Hub, Tapered Threaded Hub, Knockout Cable Entry Size, NEMA FB-1, 25 cu-in, Aluminum, Epoxy Powder Coated, 4.56 in H x 2.81 in W x 2 in D
APPFSC175A Application
For use with threaded rigid/IMC conduitAPPFSC175A Includes
Internal Ground Screw and Mounting LugAPPFSC175A Item Features
- Corrosion-resistant ideal for indoor and outdoor installations
- Weatherproof, raintight and dust tight when used with cast gasketed covers
- FS and FD boxes take standard flush wiring devices
- FD boxes take devices exceeding 1.63/41.4 mm in depth under fastening ears
- Malleable iron for high tensile strength and ductility provides greater resistance to impact and shock
- Both malleable iron and aluminum boxes have ridge top construction for positive cover/gasket/box fit
- Accurately tapped, tapered threads for tight, rigid joints and ground continuity
- Complete selection of covers, receptacles, plugs, gaskets and accessories
- Covers have captive stainless steel screws to speed installation, prevents loss of screws
- Smooth, rounded integral bushing in each hub protects conductor insulation
- Accommodate wiring devices such as switches and receptacles
- Provide excellent service in areas where boxes are subject to rough usage
- Serve as pull boxes for conductors
- Permit access to conductors for maintece
- Provide openings for making splices
- Allow connections for branch conduit runs
- Blank bodies for special conduit entrance arrangements
- Without knockouts
APPFSC175A Standards
UL 514A E2527|CSA C22.2 No. 18.1, 001472SKU #2138184Part Number #APPFSC175AUNSPSC39121315UPC00781381343756
