Part Number # APPFSX150
SKU # 2447388
Image Disclaimers Message
Appleton APPFSX150 Key Features
| Brand: | Appleton |
|---|---|
| Part Number # : | APPFSX150 |
| SKU #: | 2447388 |
| Capacity: | 18 cu-in |
| Dimensions: | 5.88 in H x 4.19 in W x 2 in D |
| Enclosure Type: | NEMA FB-1 |
| Finish: | Tri-Coated |
| Hub Size: | 1/2 in |
| Hub Style: | Threaded |
| Number of Gangs: | 1 |
| Type: | FSX Shallow |
| Material: | Malleable Iron |
| Manufacturer Name: | Emerson Electric |
| UNSPSC: | 39121315 |
| UPC: | 00781381353809 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Appleton APPFSX150
Brand: Appleton
Part Number: APPFSX150

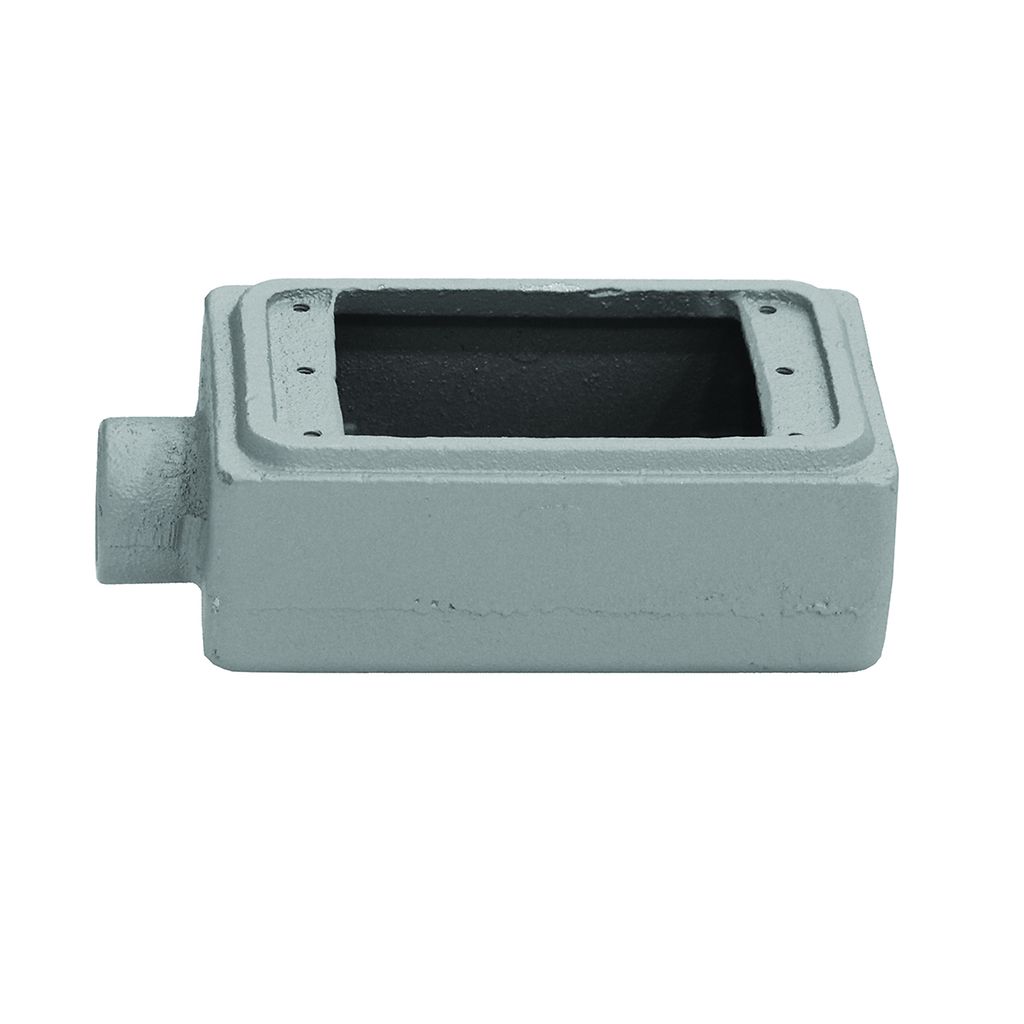

Appleton® UNILETS™ Device Box, Type FSX Heavy Duty Shallow, 4 Outlets, 1 Gangs, 4 Knockouts, 1/2 in Hub, Tapered Threaded Hub, Knockout Cable Entry Size, NEMA FB-1, 25 cu-in, Malleable Iron, Tri-Coated, 4.56 in H x 2.81 in W x 2 in D
Additional Description: APLE-APPFSX150 CAST DEV BOX SGL GANG 1/2 IN
Catalog Description: UNILETS FSX Shallow Depth 1-Gang Cast Device Box, Number Of Outlet: 4, Material: Malleable Iron, Size: 1/2 IN, Cable Entry: (4) 1/2 IN Hub, Cubic Capacity: 25 CU-IN, Knockouts: No, Height: 4.56 IN, Width: 2.81 IN, Depth: 2 IN, Finish: Triple-Coat (Zinc Electroplate, Chromate And Epoxy Powder Coat), Standard: UL 514 A, UL File Number E2527, CSA C22.2 No. 18.1, CSA 001472 Certified, NEMA FB-1, For Use With Threaded Metal Conduit And IMC
APPFSX150 Application
Accommodate wiring devices such as switches and receptacles, Provide excellent service in areas where boxes are subject to rough usage, Serve as pull boxes for conductors, Permit access to conductors for maintenance, Provide openings for making splices, Allow connections for branch conduit runs, Blank bodies for special conduit entrance arrangementsAPPFSX150 Item Features
- Corrosion-resistant; ideal for indoor and outdoor installations. Weatherproof, raintight and dust-tight when used with cast gasketed covers
- FS and FD boxes take standard flush wiring devices
- FD boxes take devices exceeding 41.4 mm (1.63 in) in depth under fastening ears
- Malleable iron for high tensile strength and ductility; provides greater resistance to impact and shock
- Both malleable iron and aluminum boxes have ridge top construction for positive cover/gasket/box fit
- Accurately tapped, tapered threads for tight, rigid joints, ground continuity
- Complete selection of covers, receptacles, plugs, gaskets and accessories
- Covers have captive stainless steel screws to speed installation, prevents loss of screws
- Internal grounding screws standard
- Available in single, two and three gang and tandem
- Smooth, rounded integral bushing in each hub protects conductor insulation
- Blank bodies can be used for special conduit entrance arrangements
APPFSX150 Standards
UL Standard: 514A|UL Listed: E-18095, E2527|Federal Specification A-A-50563|NEMA FB-1SKU #2447388Part Number #APPFSX150UNSPSC39121315UPC00781381353809
