Part Number # APPFSX175
SKU # 2261345
Image Disclaimers Message
APPFSX175

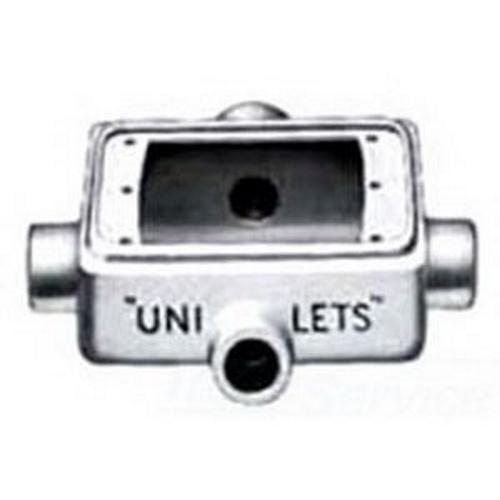

Appleton APPFSX175 Device Box
Part Number # APPFSX175
SKU # 2261345
$63.21 / Each
Appleton APPFSX175 Key Features
| Brand: | Appleton |
|---|---|
| Part Number # : | APPFSX175 |
| SKU #: | 2261345 |
| Cable Entry Size: | Knockout |
| Capacity: | 25, 25 cu-in |
| Dimensions: | 4.56 in H x 2.81 in W x 2 in D |
| Enclosure Type: | NEMA FB-1 |
| Finish: | Tri-Coated |
| Hub Size: | 3/4, 3/4 in |
| Hub Style: | Tapered Threaded |
| Number of Gangs: | 1 |
| Number of Knockouts: | 4 |
| Number of Outlets: | 4 |
| Type: | Type FSX Heavy Duty Shallow |
| Country of origin: | MX |
| Material: | Malleable Iron |
| Manufacturer Name: | Emerson Electric |
| UNSPSC: | 39121315 |
| UPC: | 00781381353854 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$63.21 / Each
Quantity:
- Appleton UNILETS Device Box, Type FSX Heavy Duty Shallow, 4 Outlets, 1 Gangs, 4 Knockouts, 3/4 in Hub, Tapered Threaded Hub, Knockout Cable Entry Size, NEMA FB-1, 25 cu-in, Malleable Iron, Tri-Coated, 4.56 in H x 2.81 in W x 2 in D
APPFSX175 Application
For use with threaded rigid/IMC conduitAPPFSX175 Includes
Internal Ground Screw and Mounting LugAPPFSX175 Item Features
- Corrosion-resistant ideal for indoor and outdoor installations
- Weatherproof, raintight and dust tight when used with cast gasketed covers
- FS and FD boxes take standard flush wiring devices
- FD boxes take devices exceeding 1.63/41.4 mm in depth under fastening ears
- Malleable iron for high tensile strength and ductility provides greater resistance to impact and shock
- Both malleable iron and aluminum boxes have ridge top construction for positive cover/gasket/box fit
- Accurately tapped, tapered threads for tight, rigid joints and ground continuity
- Complete selection of covers, receptacles, plugs, gaskets and accessories
- Covers have captive stainless steel screws to speed installation, prevents loss of screws
- Smooth, rounded integral bushing in each hub protects conductor insulation
- Accommodate wiring devices such as switches and receptacles
- Provide excellent service in areas where boxes are subject to rough usage
- Serve as pull boxes for conductors
- Permit access to conductors for maintece
- Provide openings for making splices
- Allow connections for branch conduit runs
- Blank bodies for special conduit entrance arrangements
- Without knockouts
APPFSX175 Standards
UL 514 A, UL File Number E2527, CSA C22.2 No. 18.1, CSA 001472 Certified, NEMA FB-1SKU #2261345Part Number #APPFSX175UNSPSC39121315UPC00781381353854
