APPLB150A

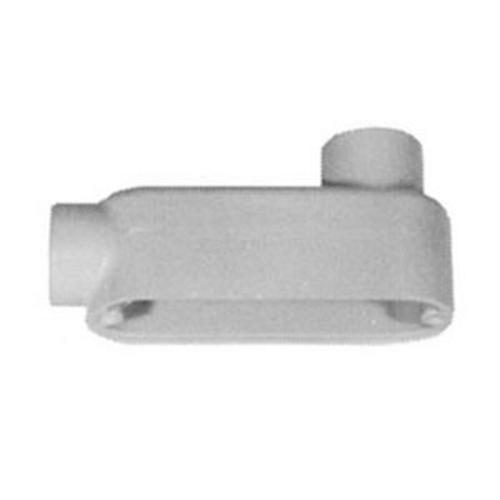

Appleton APPLB150A Conduit Outlet Body
Part Number # APPLB150A
SKU # 3555
Appleton APPLB150A Key Features
Appleton APPLB150A Conduit Outlet Body
Brand: Appleton
Part Number: APPLB150A
Appleton Unilets Conduit Outlet Body, Type LB, 1-1/2 in Hub, 2 Hubs, 35 cu-in, 85, NEMA FB-1 Enclosure, FNPT, Surface Mount, Aluminum, Epoxy Powder Coated, Gray, 7.88 in L x 3.5 in W x 3.81 in H
Additional Description: APLE-APPLB150A 1 1/2 TYPE LB FORM 85 U.(A)
Catalog Description: Form 85 UNILETS Type LB Conduit Outlet Body, Hub Size: 1-1/2 IN, Form: 85, Length: 7.88 IN, Height: 3.81 IN, Material: Pressure Cast Aluminum, Finish: Epoxy Powder Coat, Connection: Tapered Female Threaded, Standard: UL 514A, UL 514B, UL File Number E2527, CSA C22.2 No. 18.3, CSA 065183, NEMA FB-1, For Use With Rigid Steel, Rigid Aluminum Conduit, IMC And EMT
APPLB150A Application
For use with IMC, EMT, rigid steel or aluminum conduitAPPLB150A Item Features
- Roomy interiors more wiring space
- Smooth, rounded integral bushings in hubs protect conductor insulation
- Accurately tapped, tapered threads for tight, rigid joints and excellent ground continuity
- Form 85 copper free aluminum Unilets are lightweight, self-oxidizing, self-renewing and offer a high corrosion resistance
- Lightweight aluminum facilitates shipping, handling and installing
- Sizes with flat back design ideal where fitting is mounted flat against surface
- 1/2 to 3 in blank covers are domed for extra wiring space
APPLB150A Standards
CSA C22.2 No. 18.3 File No. 065183|NEMA FB-1|UL 514A|UL 514B File No. E2527SKU #3555Part Number #APPLB150AUNSPSC39131708UPC00781381476751
