Part Number # APPLL27
SKU # 3583
Image Disclaimers Message
APPLL27

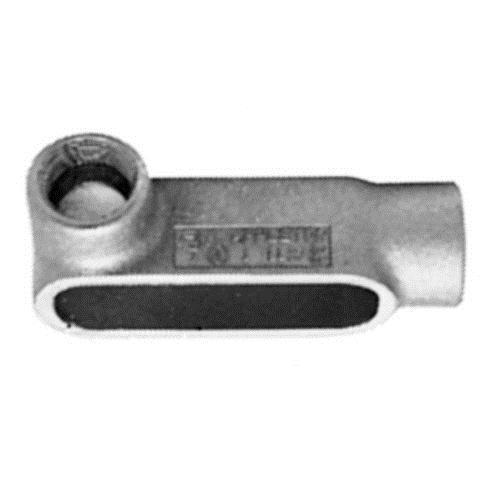

Appleton APPLL27 Conduit Outlet Body
Part Number # APPLL27
SKU # 3583
$15.86 / Each
Appleton APPLL27 Key Features
| Brand: | Appleton |
|---|---|
| Part Number # : | APPLL27 |
| SKU #: | 3583 |
| Capacity: | 7, 7 cu-in |
| Dimensions: | 5.19 in L x 2.44 in W x 2.5 in H |
| Enclosure: | NEMA FB-1 |
| Finish: | Triple Coated |
| Form: | Form 7 |
| Hub Size: | 3/4, 3/4 in |
| Type: | Type LL |
| Color: | Gray |
| Connection type: | Tapered FNPT |
| Country of origin: | MX |
| Material: | Grayloy Iron |
| Mounting type: | Surface |
| Manufacturer Name: | Emerson Electric |
| UNSPSC: | 39131708 |
| UPC: | 00781381506823 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$15.86 / Each
Quantity:
- Appleton UNILETS Conduit Outlet Body, Type LL, 3/4 in Hub, 2 Hubs, 7 cu-in Capacity, Form 7 Form, NEMA FB-1 Enclosure, Tapered FNPT Connection, Surface Mounting, Grayloy Iron, Triple Coated Finish, Gray, 5.19 in L x 2.44 in W x 2.5 in H Dimensions
APPLL27 Application
For Rigid Steel/Aluminum and IMC ConduitAPPLL27 Item Features
- Smooth, rounded integral bushing in hubs protects conductor insulation
- Accurately tapped, tapered threads for tight, rigid joints and excellent ground continuity
- Wedge-Lok form-in-place covers with integral gasket are approved for use in wet locations
- Grayloy iron bodies with cast covers and gasket are approved for use in wet locations
- Unique Wedge-Lok clip cover design allows easy removal at any later time, without damaging the conduit body and cover is secured with clips, not screws
- Completely interchangeable with Crouse-Hinds Form 7 bodies, gaskets and covers
- Equivalent FM7 and Form 7 units have identical applications and installation dimensions
- Flat back design provides greater cubic content for easier wire pulling, and more room for splicing
- Fits flush and snug against flat surfaces for more stable installation
- Smooth hub bushings and cover openings protect conductor insulation
- Smooth hub openings allow easy conduit joining
- Pan head cover screws secure cover clips and provide superior screwdriver seating and torque
- Cover screws and clips are captive to prevent loss
- Hub size, body style, compliance data, maximum wire number/size and cubic capacity molded into body
APPLL27 Standards
ARRA Compliant|UL 514A|UL 514B File No. E2527|CSA C22.2 No. 18.3/065183SKU #3583Part Number #APPLL27UNSPSC39131708UPC00781381506823
