APPLR17

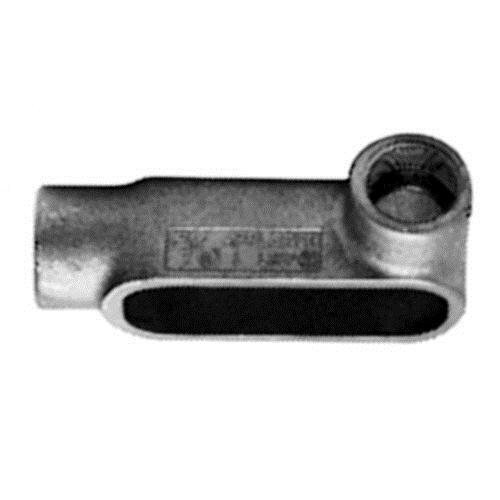

Appleton APPLR17 Conduit Outlet Body
Part Number # APPLR17
SKU # 2268613
Appleton APPLR17 Key Features
| Brand: | Appleton |
|---|---|
| Part Number # : | APPLR17 |
| SKU #: | 2268613 |
| Capacity: | 4, 4 cu-in |
| Dimensions: | 4.56 in L x 2.25 in W x 2.25 in H |
| Enclosure: | NEMA FB-1 |
| Finish: | Triple Coated |
| Form: | Form 7 |
| Hub Size: | 1/2, 1/2 in |
| Type: | Type LR |
| Color: | Gray |
| Connection type: | Tapered FNPT |
| Country of origin: | MX |
| Material: | Grayloy Iron |
| Mounting type: | Surface |
| Manufacturer Name: | Emerson Electric |
| UNSPSC: | 39131708 |
| UPC: | 00781381506939 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Appleton APPLR17 Conduit Outlet Body
Brand: Appleton
Part Number: APPLR17
Appleton UNILETS Conduit Outlet Body, Type LR, 1/2 in Hub, 2 Hubs, 4 cu-in Capacity, Form 7 Form, NEMA FB-1 Enclosure, Tapered FNPT Connection, Surface Mounting, Grayloy Iron, Triple Coated, Gray, 4.56 in L x 2.25 in W x 2.25 in H Dimensions
Additional Description: APLE-APPLR17 1/2 FM7 BODY
Catalog Description: FM7 UNILETS Type LR Conduit Outlet Body, Hub Size: 1/2 IN, Form: 7, Length: 4.56 IN, Width: 2-1/4 IN, Material: Grayloy-Iron, Finish: Triple-Coat (Zinc Electroplate, Chromate And Epoxy Powder Coat), Color: Gray, Connection: Tapered Female Th
APPLR17 Application
For Rigid Steel/Aluminum and IMC ConduitAPPLR17 Item Features
- Smooth, rounded integral bushing in hubs protects conductor insulation
- Accurately tapped, tapered threads for tight, rigid joints and excellent ground continuity
- Wedge-Lok form-in-place covers with integral gasket are approved for use in wet locations
- Grayloy iron bodies with cast covers and gasket are approved for use in wet locations
- Unique Wedge-Lok clip cover design allows easy removal at any later time, without damaging the conduit body and cover is secured with clips, not screws
- Completely interchangeable with Crouse-Hinds Form 7 bodies, gaskets and covers
- Equivalent FM7 and Form 7 units have identical applications and installation dimensions
- Flat back design provides greater cubic content for easier wire pulling, and more room for splicing
- Fits flush and snug against flat surfaces for more stable installation
- Smooth hub bushings and cover openings protect conductor insulation
- Smooth hub openings allow easy conduit joining
- Pan head cover screws secure cover clips and provide superior screwdriver seating and torque
- Cover screws and clips are captive to prevent loss
- Hub size, body style, compliance data, maximum wire number/size and cubic capacity molded into body
APPLR17 Standards
ARRA Compliant|UL 514A|UL 514B File No. E2527|CSA C22.2 No. 18.3/065183SKU #2268613Part Number #APPLR17UNSPSC39131708UPC00781381506939
