APPT37SA

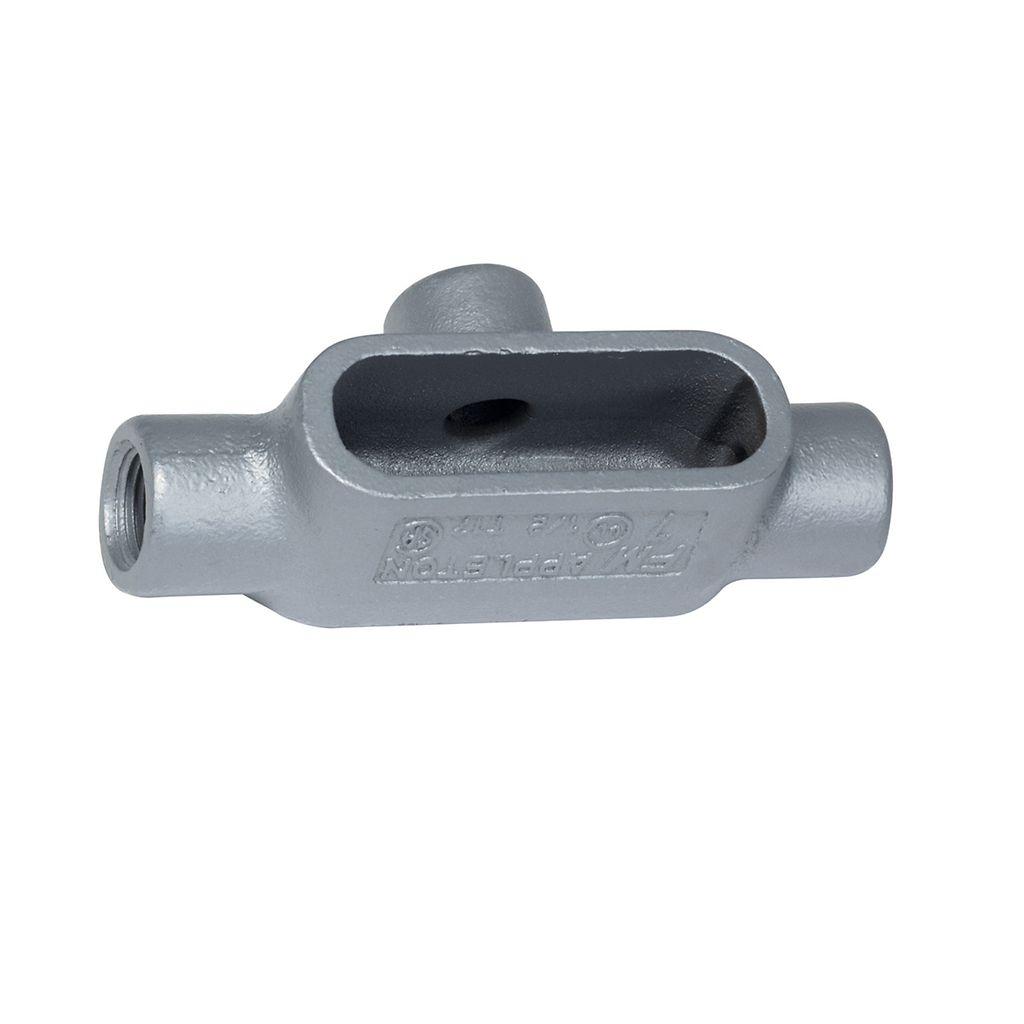

Appleton APPT37SA Unilets Conduit Outlet Body
Part Number # APPT37SA
SKU # 2422409
$45.28 / Each
Appleton APPT37SA Key Features
Brand: | Appleton |
---|---|
Part Number # : | APPT37SA |
SKU #: | 2422409 |
Capacity: | 15.5 cu-in |
Dimensions: | 7-1/4 in L x 3 in W x 2-1/4 in H |
Enclosure: | NEMA FB-1 |
Finish: | Epoxy Powder Coated, Triple Coated |
Form: | Form 7 |
Hub Size: | 1 in |
Type: | Type T |
Connection type: | Tapered FNPT |
Country of origin: | MX |
Material: | Cast Aluminum, Grayloy-Iron |
Mounting type: | Surface |
Manufacturer Name: | Emerson Electric |
UNSPSC: | 39131708 |
UPC: | 00781381600996 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$45.28 / Each
Quantity:
- Appleton UNILETS Conduit Outlet Body, Type T, 1 in Hub, 3 Hubs, 15.5 cu-in Capacity, Form 7 Form, NEMA FB-1 Enclosure, Tapered FNPT Connection, Surface Mounting, Cast Aluminum, Epoxy Powder Coated, 7-1/4 in L x 3 in W x 2-1/4 in H Dimensions
APPT37SA Application
For Rigid Steel/Aluminum and IMC ConduitAPPT37SA Item Features
- Smooth, rounded integral bushing in hubs protects conductor insulation
- Accurately tapped, tapered threads for tight, rigid joints and excellent ground continuity
- Wedge-Lok form-in-place covers with integral gasket are approved for use in wet locations
- Grayloy iron bodies with cast covers and gasket are approved for use in wet locations
- Unique Wedge-Lok clip cover design allows easy removal at any later time, without damaging the conduit body and cover is secured with clips, not screws
- Completely interchangeable with Crouse-Hinds Form 7 bodies, gaskets and covers
- Equivalent FM7 and Form 7 units have identical applications and installation dimensions
- Flat back design provides greater cubic content for easier wire pulling, and more room for splicing
- Fits flush and snug against flat surfaces for more stable installation
- Smooth hub bushings and cover openings protect conductor insulation
- Smooth hub openings allow easy conduit joining
- Pan head cover screws secure cover clips and provide superior screwdriver seating and torque
- Cover screws and clips are captive to prevent loss
- Hub size, body style, compliance data, maximum wire number/size and cubic capacity molded into body
APPT37SA Standards
UL 514A/514B/E2527|C22.2 No. 18.3|CSA 065183SKU #2422409Part Number #APPT37SAUNSPSC39131708UPC00781381600996
