Brand: Appleton
AR20034RS

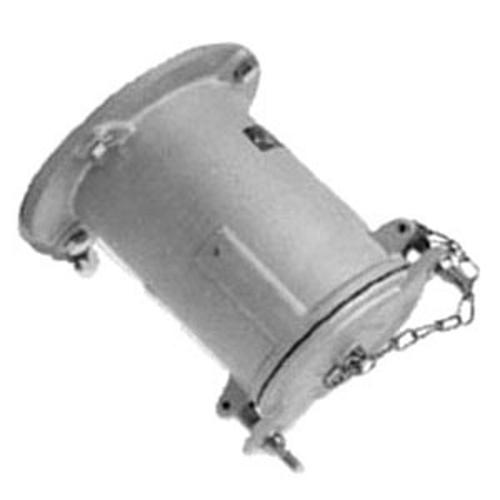

Appleton AR20034RS Pin and Sleeve Receptacle
Part Number # AR20034RS
SKU # 2308132
$1907.10 / Each
Appleton AR20034RS Key Features
| Brand: | Appleton |
|---|---|
| Part Number # : | AR20034RS |
| SKU #: | 2308132 |
| Amperage Rating: | 200, 200 A |
| Dimensions: | 8 in H x 6.63 in W |
| Frequency Rating: | 50/400, 50/400 Hz |
| NEMA Rating: | NEMA 3/3R/4/4X |
| Number of Poles: | 4 |
| Number of Wires: | 3 |
| Series: | AR Series |
| Temperature Rating (Degrees F): | -40 to 225, -40 to 225 deg F |
| Terminal Type: | Pressure Wire, Pressure Wired |
| Type: | 3-Phase S Grounding Style 1 |
| Country of origin: | MX |
| Material: | Copper-Free Aluminum |
| Manufacturer Name: | Emerson Electric |
| UNSPSC: | 39121406 |
| UPC: | 00781381296410 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$1907.10 / Each
Quantity:
- Appleton Powertite Pin and Sleeve Receptacle, 3-Phase S Grounding Style 1, Series: AR Series, 600 V AC/250 V DC, 200 A, 50/400 Hz Frequency, 4 Pole, 3 Wires, NEMA 3/3R/4/4X NEMA Rating, -40 to 225 deg F, Pressure Wire Terminal, Copper-Free Aluminum, 8 in H x 6.63 in W Dimensions
AR20034RS Application
AP20034CD and AP20034E Plugs, Motor Generator Units, Welders, Pumps, Compressors, Cellular Relay Stations, Shipping Docks, Ports, Weatherproof Enclosure and Rough Usage Construction ApplicationsAR20034RS Item Features
- Neoprene bushing compressed by cable collar prevents entrance of water, bushing is highly resistant to hydrocarbon deterioration and is self extinguishing
- Locking screw and slot prevents plug cable collar from "backing off"
- Contacts exert constant pressure along entire contact surface and provide electrical continuity
- Insulating blocks provide greatest dielectric and mechanical strength and lowest arc tracking
- Controlled length contacts ensure that ground makes first and breaks last for added safety
AR20034RS Standards
UL 1682, UL 1686, UL 50E; UL Listed: E145916, E145917; CSA Standard: C22.2 No. 182.1; CSA Certified: 065179; NEMA FB11SKU #2308132Part Number #AR20034RSUNSPSC39121406UPC00781381296410
