AR40044

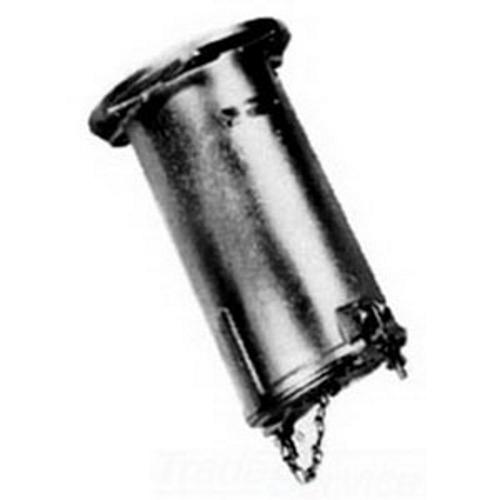

Appleton AR40044 Pin and Sleeve Receptacle
Part Number # AR40044
SKU # 2199351
$3127.82 / Each
Appleton AR40044 Key Features
| Brand: | Appleton |
|---|---|
| Part Number # : | AR40044 |
| SKU #: | 2199351 |
| Amperage Rating: | 400, 400 A |
| Dimensions: | 12-1/4 in H x 7-3/4 in W |
| Frequency Rating: | 50/400, 50/400 Hz |
| NEMA Rating: | NEMA 3/3R |
| Number of Poles: | 4 |
| Number of Wires: | 4 |
| Series: | AR Series |
| Temperature Rating (Degrees F): | -40 to 225, -40 to 225 deg F |
| Terminal Type: | Solder Wire |
| Type: | 3-Phase Grounding Style 1 |
| Country of origin: | MX |
| Material: | Copper Free Aluminum |
| Manufacturer Name: | Emerson Electric |
| UNSPSC: | 39121406 |
| UPC: | 00781381296472 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$3127.82 / Each
Quantity:
- Appleton Powertite Pin and Sleeve Receptacle, 3-Phase Grounding Style 1, Series: AR Series, 600 V AC/250 V DC, 400 A, 50/400 Hz, 4 Pole, 4 Wires, NEMA 3/3R, -40 to 225 deg F, Solder Wire Terminal, Copper Free Aluminum, 12-1/4 in H x 7-3/4 in W
AR40044 Application
AP40044E Plug, Motor Generator Units, Welders, Pumps, Compressors, Cellular Relay Stations, Shipping Docks, Ports, Weatherproof Enclosure and Rough Usage Construction ApplicationsAR40044 Item Features
- Neoprene bushing compressed by cable collar prevents entrance of water, bushing is highly resistant to hydrocarbon deterioration and is self extinguishing
- Locking screw and slot prevents plug cable collar from "backing off"
- Contacts exert constant pressure along entire contact surface and provide electrical continuity
- Insulating blocks provide greatest dielectric and mechanical strength and lowest arc tracking
- Controlled length contacts ensure that ground makes first and breaks last for added safety
AR40044 Standards
UL 1682, UL 1686, UL 50E; UL Listed: E145916, E145917; CSA Standard: C22.2 No. 182.1; CSA Certified: 065179; NEMA FB11SKU #2199351Part Number #AR40044UNSPSC39121406UPC00781381296472
