Part Number # AR40144
SKU # 2193837
AR40144

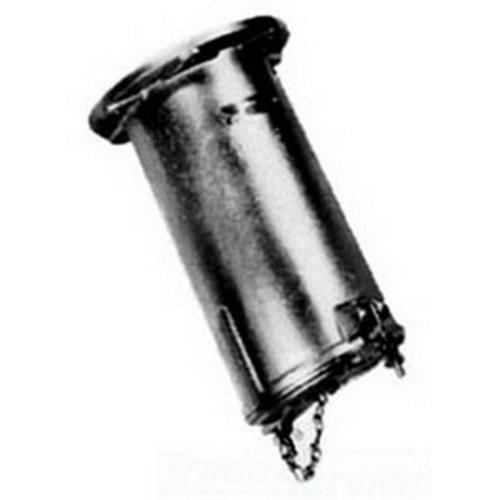

Appleton AR40144 Pin and Sleeve Receptacle
Part Number # AR40144
SKU # 2193837
Appleton AR40144 Key Features
| Brand: | Appleton |
|---|---|
| Part Number # : | AR40144 |
| SKU #: | 2193837 |
| Amperage Rating: | 400, 400 A |
| Dimensions: | 12-1/4 in H x 7-3/4 in W |
| Frequency Rating: | 50/400, 50/400 Hz |
| NEMA Rating: | NEMA 3/3R |
| Number of Poles: | 4 |
| Number of Wires: | 4 |
| Series: | AR Series |
| Temperature Rating (Degrees F): | -40 to 225, -40 to 225 deg F |
| Terminal Type: | Solder Wire |
| Type: | 3-Phase Grounding Style 1 |
| Country of origin: | MX |
| Material: | Copper Free Aluminum |
| Manufacturer Name: | Emerson Electric |
| UNSPSC: | 39121406 |
| UPC: | 00781381296526 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Appleton AR40144 Pin and Sleeve Receptacle
Brand: Appleton
Part Number: AR40144
Appleton Powertite Pin and Sleeve Receptacle, 3-Phase Grounding Style 1, Series: AR Series, 600/250 VAC/VDC, 400 A, 50/400 Hz, 4 Pole, 4 Wires, NEMA 3/3R, -40 to 225 deg F, Solder Wire Terminal, Copper Free Aluminum, 12-1/4 in H x 7-3/4 in W
Additional Description: APLE-AR40144 400AMP RECEPT ASSEM 4P S1 1.25
Catalog Description: Powertite Grounding Style 1 Receptacle, Number Of Poles: 4, Number Of Wires: 4, Wire Size: 400 - 1000 MCM, Amperage Rating: 400 AMP, Voltage Rating: 600 VAC At 50 - 400 HZ, 250 VDC, Phase: 3 PH, Material: Copperfree (4/10 Of 1 PCT Maximum
AR40144 Application
AP40144F and AP40144G Plugs, Motor Generator Units, Welders, Pumps, Compressors, Cellular Relay Stations Ideal Use On Shipping Docks, Ports, Weatherproof Enclosure and Rough Usage Construction ApplicationsAR40144 Item Features
- Neoprene bushing compressed by cable collar prevents entrance of water, bushing is highly resistant to hydrocarbon deterioration and is self extinguishing
- Locking screw and slot prevents plug cable collar from "backing off"
- Contacts exert constant pressure along entire contact surface and provide electrical continuity
- Insulating blocks provide greatest dielectric and mechanical strength and lowest arc tracking
- Controlled length contacts ensure that ground makes first and breaks last for added safety
AR40144 Standards
UL 1682, UL 1686, UL 50E; UL Listed: E145916, E145917; CSA Standard: C22.2 No. 182.1; CSA Certified: 065179; NEMA FB11SKU #2193837Part Number #AR40144UNSPSC39121406UPC00781381296526
Image provided may only be a representation of final product and may include optional equipment
