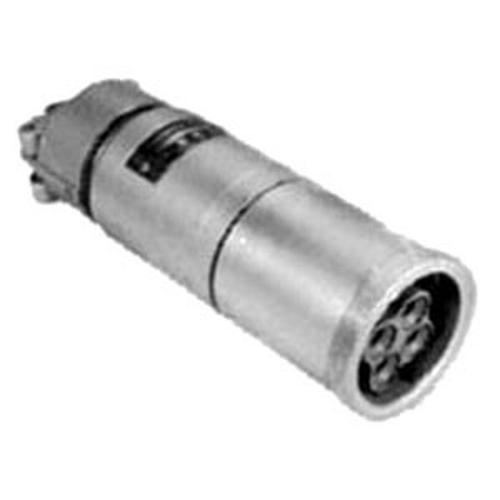

Appleton ARC1044CD Pin and Sleeve Connector Body
Appleton ARC1044CD Pin and Sleeve Connector Body
Part #:ARC1044CD
SKU #: 2216202
Key Features
Part #:ARC1044CD
SKU #: 2216202
Brand: Appleton
Amperage Rating: 100, 100 A
Dimensions: 16 in L x 4-1/4 in W
Frequency Rating: 50/400, 50/400 Hz
NEMA Rating: NEMA 3/3R/4/4X
Number of Poles: 4
- Shell grounding style 1
- Designed to supply power to portable or fixed electrical equipment
- Insulating blocks provide greatest dielectric and mechanical strength and lowest arc tracking
- Natural finish glass filled polyester insulating blocks
- 0.391 in dia wire recess
- Locking screw and slot prevents plug cable collar from "backing off"
- Controlled length contacts ensure that ground makes first and breaks last for added safety
- Contacts exert constant pressure along entire contact surface and provide electrical continuity
- Neoprene bushing compressed by cable collar prevents entrance of water, bushing is highly resistant to hydrocarbon deterioration and is self extinguishing
- Water resistant
Appleton ARC1044CD Pin and Sleeve Connector Body
Appleton Powertite Pin and Sleeve Connector Body, 3-Phase Grounding Style 1 Weatherproof, Series: ARC, 600/250 VAC/VDC, 100 A, 50/400 Hz Frequency, 4 Pole, 4 Wires, NEMA 3/3R/4/4X NEMA Rating, -40 to 225 deg F, Pressure Wire Terminal, Copper Free Aluminum, 16 in L x 4-1/4 in W Dimensions
Additional Description: APLE-ARC1044CD 100A CONN BODY ASSY 4P S1
Catalog Description: Powertite Grounding Style 1 Connector Body, Number Of Poles: 4, Number Of Wires: 4, Wire Size: 4 - 1 AWG (Building), 4 - 2 AWG (Extra Flex), Amperage Rating: 100 AMP, Voltage Rating: 600 VAC At 50 - 400 HZ, 250 VDC, Phase: 3 PH, Materia
