ARC15034CD

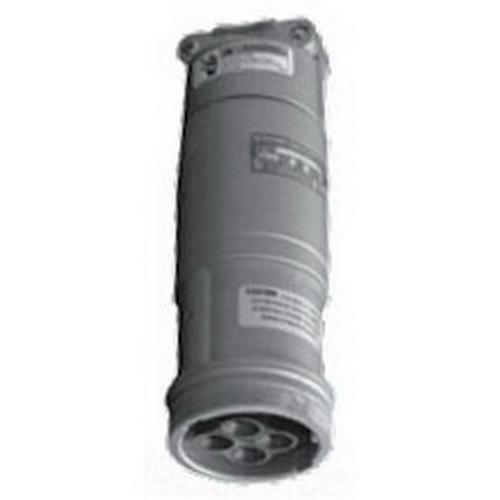

Appleton ARC15034CD Powertite Pin And Sleeve Connector Body
Part Number # ARC15034CD
SKU # 2398654
$1416.75 / Each
Appleton ARC15034CD Key Features
| Brand: | Appleton |
|---|---|
| Part Number # : | ARC15034CD |
| SKU #: | 2398654 |
| Amperage Rating: | 150 A |
| Dimensions: | 13 in L x 5-3/4 in W |
| Frequency Rating: | 50/400 Hz |
| NEMA Rating: | NEMA 3/3R/4/4X |
| Number of Poles: | 4 |
| Number of Wires: | 3 |
| Series: | ARC |
| Temperature Rating (Degrees F): | -40 to 225 deg F |
| Terminal Type: | Pressure Wire |
| Type: | 3-Phase Grounding Style 2 |
| Country of origin: | MX |
| Material: | Copper Free Aluminum |
| Manufacturer Name: | Emerson Electric |
| UNSPSC: | 39121406 |
| UPC: | 00078138118959 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$1416.75 / Each
Quantity:
- Appleton Powertite Pin and Sleeve Connector Body, 3-Phase Grounding Style 2, Series: ARC, 150 A, 50/400 Hz Frequency, 4 Pole, 3 Wires, NEMA 3/3R/4/4X NEMA Rating, -40 to 225 deg F, Pressure Wire Terminal, Copper Free Aluminum, 13 in L x 5-3/4 in W Dimensions
ARC15034CD Application
ACP15034CD Clamping Ring Plug, Motor Generator Units, Welders, Pumps, Compressors, Cellular Relay Stations, Shipping Docks, Ports, Ship to Shore and Rough Usage Construction ApplicationsARC15034CD Item Features
- Shell and extra pole grounding style 2
- Designed to supply power to portable or fixed electrical equipment
- Insulating blocks provide greatest dielectric and mechanical strength and lowest arc tracking
- Natural finish glass filled polyester insulating blocks
- 0.525 in dia wire recess
- Locking screw and slot prevents plug cable collar from "backing off"
- Controlled length contacts ensure that ground makes first and breaks last for added safety
- Contacts exert constant pressure along entire contact surface and provide electrical continuity
- Neoprene bushing compressed by cable collar prevents entrance of water, bushing is highly resistant to hydrocarbon deterioration and is self extinguishing
ARC15034CD Standards
UL 1682, UL 1686, UL 50E; UL Listed: E145916, E145917; CSA Standard: C22.2 No. 182.1; CSA Certified: 065179; NEMA FB11SKU #2398654Part Number #ARC15034CDUNSPSC39121406UPC00078138118959
