Part Number # ARC3033BCRS
SKU # 2176273
ARC3033BCRS

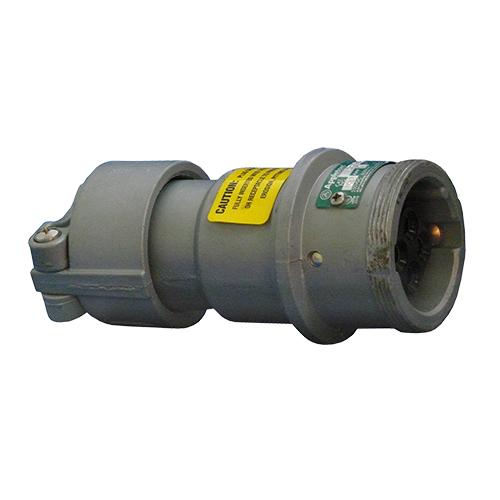

Appleton ARC3033BCRS Pin and Sleeve Connector Body
Part Number # ARC3033BCRS
SKU # 2176273
Appleton ARC3033BCRS Key Features
| Brand: | Appleton |
|---|---|
| Part Number # : | ARC3033BCRS |
| SKU #: | 2176273 |
| Amperage Rating: | 30, 30 A |
| Dimensions: | 10.5 in L x 3.13 in W |
| Frequency Rating: | 50/400, 50/400 Hz |
| NEMA Rating: | NEMA 3/3R/4/4X |
| Number of Poles: | 3 |
| Number of Wires: | 3 |
| Series: | ARC |
| Temperature Rating (Degrees F): | -40 to 225, -40 to 225 deg F |
| Terminal Type: | Pressure Wire, Pressure Wired |
| Type: | 3-Phase Grounding Style 1 Weatherproof |
| Country of origin: | MX |
| Material: | Copper Free Aluminum |
| Manufacturer Name: | Emerson Electric |
| UNSPSC: | 39121406 |
| UPC: | 00781381710718 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Appleton ARC3033BCRS Pin and Sleeve Connector Body
Brand: Appleton
Part Number: ARC3033BCRS
Appleton Powertite Pin and Sleeve Connector Body, 3-Phase Grounding Style 1 Weatherproof, Series: ARC, 600/250 VAC/VDC, 30 A, 50/400 Hz Frequency, 3 Pole, 3 Wires, NEMA 3/3R/4/4X NEMA Rating, -40 to 225 deg F, Pressure Wire Terminal, Copper Free Aluminum, 10.5 in L x 3.13 in W Dimensions
Additional Description: APLE-ARC3033BCRS 30A CONN ASSY 3W-3P STY 1
Catalog Description: Pin and Sleeve Connector Body, Type Reverse Service, Compressor, Motor Generator Unit, Pump, Welder, Constructional Feature Weatherproof, Water Resistant, Voltage Rating 600 VAC at 50 to 400 Hz, 250 VDC, Current Rating 30 Ampere, Number of Poles 3, Number of Wires 3, Grounding Style 1, Shell, Minimum Cable Outer Diameter 0.5 Inch, Maximum Cable Outer Diameter 1.25 Inch, Material Epoxy Powder Coated Copper-Free Aluminum, Approval UL 1682/1686/50E, CSA C22.2, Contact Material Copper, Enclosure NEMA 4X, Application Generator, Shipping Dock, Port, Applicable Standard NEMA FB-11, Temperature Rating -40 to 107 Deg C
ARC3033BCRS Application
ACP3033BC Metallic Clamping Ring Plug, Motor Generator Units, Welders, Pumps, Compressors, Cellular Relay Stations, Shipping Docks, Ports, and Other Ship to Shore and Rough Usage Construction ApplicationsARC3033BCRS Item Features
- Shell grounding style 1
- Designed to supply power to portable or fixed electrical equipment
- Insulating blocks provide greatest dielectric and mechanical strength and lowest arc tracking
- Natural finish glass filled polyester insulating blocks
- 9/32 in dia wire recess
- Locking screw and slot prevents plug cable collar from "backing off"
- Controlled length contacts ensure that ground makes first and breaks last for added safety
- Contacts exert constant pressure along entire contact surface and provide electrical continuity
- Neoprene bushing compressed by cable collar prevents entrance of water, bushing is highly resistant to hydrocarbon deterioration and is self extinguishing
- Water resistant
ARC3033BCRS Standards
UL 1682|UL 1686|UL 50E File No. E145916/E145917|CSA C22.2 No. 182.1|CSA File No. 065179SKU #2176273Part Number #ARC3033BCRSUNSPSC39121406UPC00781381710718
Image provided may only be a representation of final product and may include optional equipment
