Appleton B200 Conduit Bushing
Part Number # B200
SKU # 28675

B200
Appleton B200 Conduit Bushing
Part Number # B200
SKU # 28675
Appleton B200 Key Features
| Brand: | Appleton |
|---|---|
| Part Number # : | B200 |
| SKU #: | 28675 |
| Dimensions: | 2-3/4 in OD x 7/8 in W |
| UNSPSC: | 39121312 |
| UPC: | 00783126029154 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Prices are in USD. Orders shipped to Canada may be subject to duties, taxes and brokerage fees, collected by the carrier on delivery.
Appleton B200 Conduit Bushing
Brand: Appleton
Part Number: B200
O-Z/Gedney Conduit Bushing, Type B, 2 in Trade, Insulated Insulated/Non-Insulated, 302 deg F, Malleable Iron, Zinc Plated Finish, 2-3/4 in OD x 7/8 in W Dimensions
Additional Description: APLE-B200 2 IN INSUL BSHG
Catalog Description: OZ-Gedney Type B Insulated Bushing, Size: 2 IN, Malleable Iron, Finish: Zinc Plated, Connection: Threaded, 150 DEG C, 2-3/4 IN Outside Diameter, 7/8 IN Width, Third Party Certification: UL File Number E-11853, CSA 011584, Applicable Third Party Stan
B200 Application
For threaded rigid conduit and IMCB200 Item Features
- O-Z/Gedney specification grade insulated bushings help protect insulated conductors from abrasion during pulling or due to mechanical vibration
- They also provide a voltage gradient between the live conductors and ground at the point where conductor insulation is subjected to electrical and mechanical stress
- Molded on high impact phenolic thermosetting insulation
- Positive metallic conduit stop
- Type B insulated bushings of malleable iron or steel, with conduit end stop and integrally molded noncombustible phenolic insulated surfaces rated 150 deg C shall be used on the ends of all raceways containing number 4 or larger conductors
B200 Standards
ARRA Compliant|CSA 011584|CSA C22.2 No.18|Federal Specification W-F-408E|NEMA FB-1|UL 514B|UL File No. E11853SKU #28675Part Number #B200UNSPSC39121312UPC00783126029154

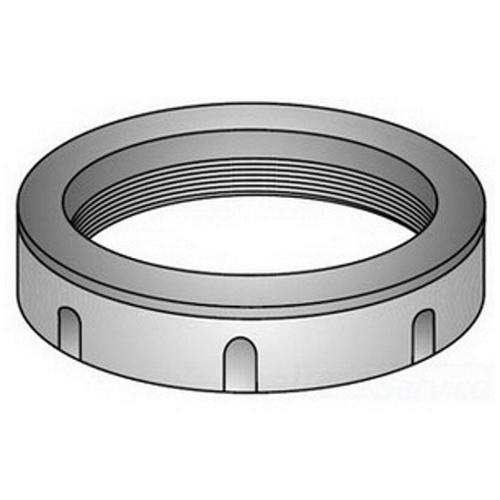

Image provided may only be a representation of final product and may include optional equipment
