Part Number # BC300A
SKU # 2376084
Image Disclaimers Message
Brand: Appleton
BC300A

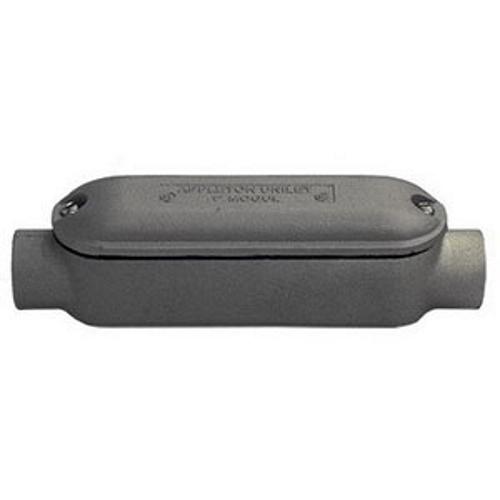

Appleton BC300A Conduit Outlet Body
Part Number # BC300A
SKU # 2376084
$555.29 / Each
Typical price:$839.10 / Each
Appleton BC300A Key Features
| Brand: | Appleton |
|---|---|
| Part Number # : | BC300A |
| SKU #: | 2376084 |
| Capacity: | 475 cu-in |
| Dimensions: | 26.88 in L x 4.63 in W x 5.94 in H |
| Enclosure: | NEMA FB-1 |
| Finish: | Epoxy Powder Coated |
| Hub Size: | 3 in |
| Series: | NEC 8x |
| Type: | Type-C |
| Connection type: | Tapered FNPT |
| Country of origin: | MX |
| Material: | Aluminum |
| Manufacturer Name: | Emerson Electric |
| UNSPSC: | 39131708 |
| UPC: | 00781381474368 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$555.29 / Each
Typical price:$839.10 / Each
Quantity:
- Appleton Mogul UNILETS Conduit Outlet Body, Type-C, Series: NEC 8x, 3 in Hub, 2 Hubs, 475 cu-in Capacity, NEMA FB-1 Enclosure, Tapered FNPT Connection, Aluminum, Epoxy Powder Coated Finish, 26.88 in L x 4.63 in W x 5.94 in H Dimensions
BC300A Application
Rigid Metal and IMC Conduit ApplicationsBC300A Item Features
- Exclusive built-in rollers facilitate cable pulling
- Smooth, rounded integral bushing in each hub protects conductor insulation
- Accurately tapped, tapered threads for tight, rigid joints and ground continuity
- Covers have captive stainless steel screws to speed installation, prevent freezing of screws
- Distance between centerline of each hub bushing (conduit stop) exceeds eight times the trade diameter of the conduit per NEC 314.28(A)(1)
BC300A Standards
UL 514B File No. E2527|CSA C22.2 No. 18.3/065183SKU #2376084Part Number #BC300AUNSPSC39131708UPC00781381474368
