BLG2004

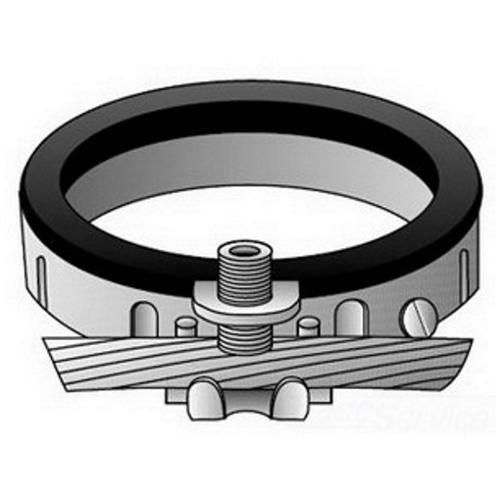

Appleton BLG2004 Grounding Bushing
Part Number # BLG2004
SKU # 2333969
$316.10 / 10Each
Appleton BLG2004 Key Features
| Brand: | Appleton |
|---|---|
| Part Number # : | BLG2004 |
| SKU #: | 2333969 |
| AC Cable Size: | 14 to 4, 14 to 4 AWG |
| Dimensions: | 2-3/4 in Dia x 7/8 in W |
| Finish: | Zinc Plated |
| Insulated/Non-Insulated: | Insulated |
| Temperature Rating (Degrees F): | 150, 150 deg C |
| Trade Size: | 2, 2 in |
| Type: | Type BLG |
| Country of origin: | MX |
| Material: | Malleable Iron |
| Manufacturer Name: | Emerson Electric |
| UNSPSC: | 39121312 |
| UPC: | 00783126042306 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$316.10 / 10Each
Quantity:
- O-Z/Gedney Grounding Bushing, Type BLG, 14 to 4 AWG AC Cable Size, 2 in Trade, Insulated Insulated/Non-Insulated, 150 deg C, Malleable Iron, Zinc Plated Finish, 2-3/4 in Dia x 7/8 in W Dimensions
BLG2004 Application
For threaded rigid conduit, IMC and EMT conduitBLG2004 Item Features
- O-Z/Gedney specification grade insulated bushings provide a grounding lug to allow for grounding of conduit through the insulated bushing
- Protects insulated conductors from abrasion during pulling and mechanical vibration
- Provides voltage gradient between line conductors and ground at point of electrical and mechanical stress on conductor insulation
- Allows easy insertion of grounding conductor for through or end connection
- Low grounding connector profile
- Spring action design maintains positive firm contact on grounding conductor
- Set screw provides fixed alignment and positive ground continuity
- Phenolic insulation, with 150 deg C UL rating, molded on over metallic conduit stop will not shatter or shrink at sub-zero temperatures
- Lugs not sold separately
- Copper conductor only for 14 to 4 AWG lug
BLG2004 Standards
ARRA Compliant|CSA 015978|CSA 467 C22.2 No.41|Federal Specification W-F-408E|NEMA FB-1|UL 514B E24264SKU #2333969Part Number #BLG2004UNSPSC39121312UPC00783126042306
