Part Number # BLL200M
SKU # 2445236
BLL200M
Appleton BLL200M
Part Number # BLL200M
SKU # 2445236
Appleton BLL200M Key Features
| Brand: | Appleton |
|---|---|
| Part Number # : | BLL200M |
| SKU #: | 2445236 |
| Capacity: | 134 cu-in |
| Dimensions: | 14.63 in L x 4.13 in W x 5 in H |
| Enclosure: | NEMA FB-1 |
| Finish: | Triple Coated |
| Hub Size: | 2 in |
| Series: | NEC 6x |
| Type: | Type LL |
| Connection type: | Tapered FNPT |
| Country of origin: | MX |
| Material: | Malleable Iron |
| Manufacturer Name: | Emerson Electric |
| UNSPSC: | 39131708 |
| UPC: | 00781381463577 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Appleton BLL200M
Brand: Appleton
Part Number: BLL200M
Appleton® Mogul UNILETS™ Conduit Outlet Body, Type LL, Series: NEC 6x, 2 in Hub, 2 Hubs, 134 cu-in Capacity, NEMA FB-1 Enclosure, Tapered FNPT Connection, Malleable Iron, Triple Coated Finish, 14.63 in L x 4.13 in W x 5 in H Dimensions
Additional Description: APLE-BLL200M 2 MOGUL UNILET TYPE LL
Catalog Description: Mogul UNILETS Type LL NEC 6X Conduit Outlet Body With Assembled Cover And Gasket, Hub Size: 2 IN, Length: 14.63 IN, Width: 4.13 IN, Material: Malleable Iron, Finish: Triple-Coat (Zinc Electroplate, Chromate And Epoxy Powder Coat), Connec
BLL200M Application
Rigid Metal and IMC Conduit ApplicationsBLL200M Item Features
- Smooth, rounded integral bushing in each hub protects conductor insulation
- Accurately tapped, tapered threads for tight, rigid joints and ground continuity
- Covers have captive stainless steel screws to speed installation, prevent freezing of screws
- Like LB moguls, these moguls have an end hub
- The second hub is in the side (LL left and LR right) instead of the back
- These moguls have an end hub, the second hub is in the side (LL left and LR right) instead of the back
BLL200M Standards
UL 514B File No. E2527|CSA C22.2 No. 18.3/065183|RoHS CompliantSKU #2445236Part Number #BLL200MUNSPSC39131708UPC00781381463577

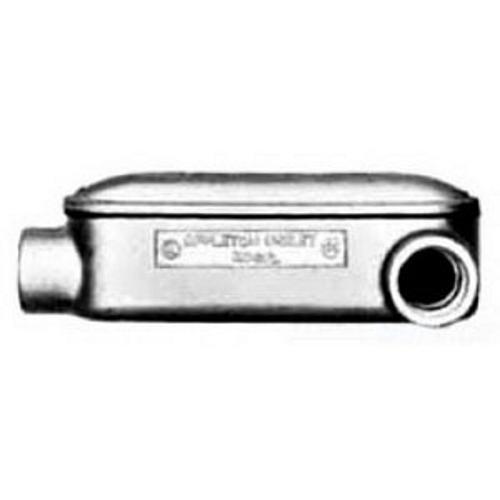

Image provided may only be a representation of final product and may include optional equipment
