Part Number # C100M
SKU # 3112
C100M

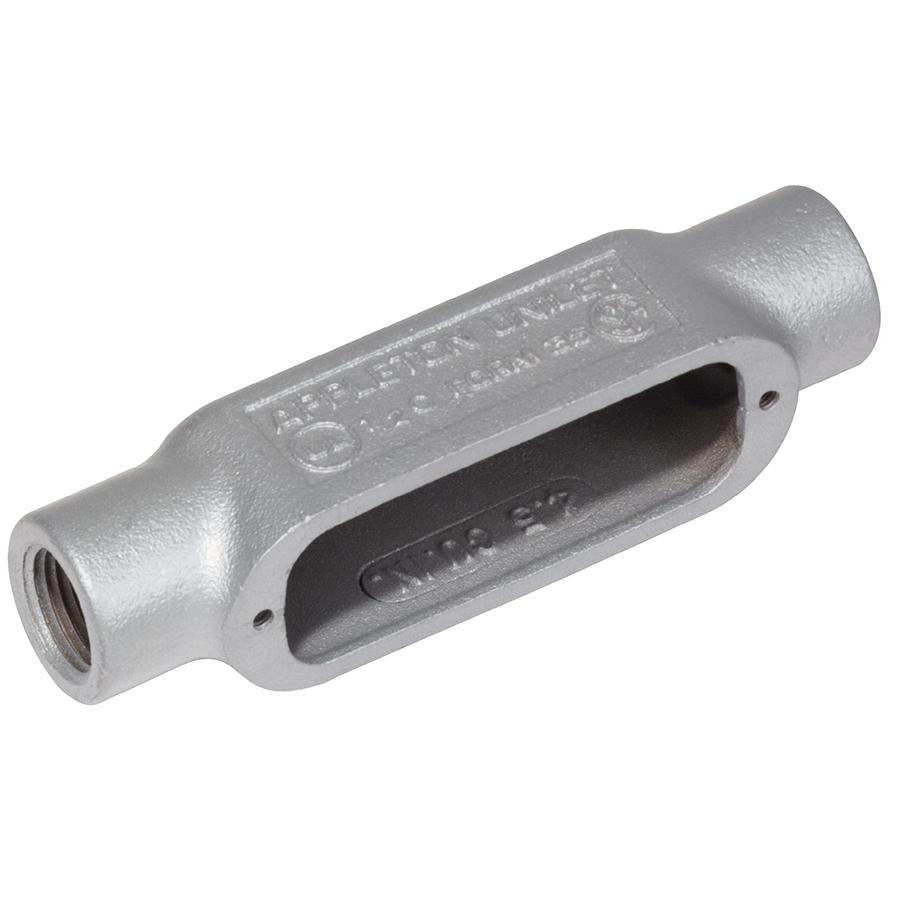

Appleton C100M Conduit Outlet Body
Part Number # C100M
SKU # 3112
Appleton C100M Key Features
| Brand: | Appleton |
|---|---|
| Part Number # : | C100M |
| SKU #: | 3112 |
| Capacity: | 12.5, 12.5 cu-in |
| Dimensions: | 7.13 in L x 1.81 in W x 1.94 in H |
| Enclosure: | NEMA FB-1 |
| Finish: | Triple Coated |
| Form: | Form 35 |
| Hub Size: | 1, 1 in |
| Type: | Type C, Type-C |
| Connection type: | Tapered FNPT |
| Country of origin: | MX |
| Material: | Malleable Iron |
| Mounting type: | Surface |
| Manufacturer Name: | Emerson Electric |
| UNSPSC: | 39131708 |
| UPC: | 00781381164856 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Appleton C100M Conduit Outlet Body
Brand: Appleton
Part Number: C100M
Appleton UNILETS Conduit Outlet Body, Type-C, 1 in Hub, 2 Hubs, 12.5 cu-in Capacity, Form 35 Form, NEMA FB-1 Enclosure, Tapered FNPT Connection, Surface Mounting, Malleable Iron, Triple Coated, 7.13 in L x 1.81 in W x 1.94 in H Dimensions
Additional Description: APLE-C100M 1 IN FORM 35 UNILET
Catalog Description: Form 35 UNILETS Type C Conduit Outlet Body, Hub Size: 1 IN, Form: 35, Length: 7.13 IN, Width: 1.81 IN, Height: 1.94 IN, Material: Malleable Iron, Finish: Triple-Coat (Zinc Electroplate, Chromate And Epoxy Powder Coat), Connection: Tapered
C100M Application
For Rigid Steel/Aluminum and IMC ConduitC100M Item Features
- Smooth, rounded integral bushing in hubs protects conductor insulation
- Accurately tapped, tapered threads for tight, rigid joints and excellent ground continuity
- Form 35 malleable iron UNILETS high tensile strength and ductility
- High corrosion resistance, high impact and shock resistance
- Sizes with flat back design ideal where fitting is mounted flat against surface
C100M Standards
ARRA Compliant|UL 514B File No. E2527|C22.2 No. 18.3/065183 CertifiedSKU #3112Part Number #C100MUNSPSC39131708UPC00781381164856
Image provided may only be a representation of final product and may include optional equipment
