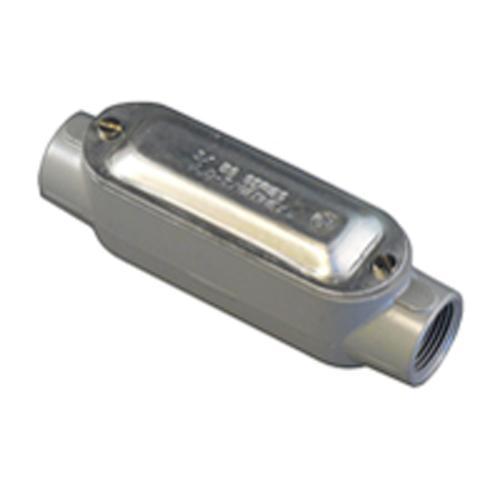

Appleton C125ACGA Unilets Conduit Outlet Body
Part Number # C125ACGA
SKU # 2394135
Appleton C125ACGA Key Features
| Brand: | Appleton |
|---|---|
| Part Number # : | C125ACGA |
| SKU #: | 2394135 |
| Capacity: | 34.8 cu-in |
| Dimensions: | 8.56 in L x 2.5 in W x 2.75 in H |
| Enclosure: | NEMA FB-1 |
| Finish: | Epoxy Powder Coated |
| Form: | Form 85 |
| Hub Size: | 1-1/4 in |
| Type: | Type-C |
| Connection type: | Tapered FNPT |
| Country of origin: | IN |
| Material: | Aluminum |
| Mounting type: | Surface |
| Manufacturer Name: | Emerson Electric |
| UNSPSC: | 39131708 |
| UPC: | 00781381826204 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Appleton C125ACGA Unilets Conduit Outlet Body
Brand: Appleton
Part Number: C125ACGA
Appleton UNILETS Conduit Outlet Body, Type-C, 1-1/4 in Hub, 2 Hubs, 34.8 cu-in Capacity, Form 85 Form, NEMA FB-1 Enclosure, Tapered FNPT Connection, Surface Mounting, Aluminum, Epoxy Powder Coated, 8.56 in L x 2.5 in W x 2.75 in H Dimensions
Additional Description: APLE-C125ACGA 1-1/4 IN C COND BODY ASSY ALUM
Catalog Description: IMC/Rigid Conduit Body, Access Opening Side, Configuration C, Cover Type Epoxy Powder Coated Cast Aluminum, Hub Location Straight, Number of Hubs 2, Hub Size 1-1/4 Inch, Size 8.56 Inch L x 2.5 Inch W x 2.75 Inch H, Installation Threaded, Material Epoxy Powder Coated Pressure Cast Copper Free Aluminum Body, Neoprene Gasket, Stainless Steel Screw, Form Type Form 85, Approval UL 514A/514B/E2527, CSA C22.2, Used On IMC/Rigid Conduit, Applicable Standard NEC/CEC, NEMA FB-1, Capacity 34.8 Cu Inch
C125ACGA Application
Rigid/IMC Conduit ApplicationsC125ACGA Includes
Assembled Cover, Gasket and ScrewC125ACGA Item Features
- Smooth, rounded integral bushing in hubs protects conductor insulation
- Roomy interiors more wiring space
- Accurately tapped, tapered threads for tight, rigid joints and excellent ground continuity
- Form 85 copper free aluminum UNILETS are lightweight, self oxidizing, self-renewing and offer a high corrosion resistance
- Lightweight aluminum facilitates shipping, handling and installing
- Sizes with flat back design ideal where fitting is mounted flat against surface
- Internal volume and maximum wire capacity clearly marked on castings
C125ACGA Standards
UL 514A/514B/E2527|CSA C22.2 No. 18.3/065183SKU #2394135Part Number #C125ACGAUNSPSC39131708UPC00781381826204
