C150

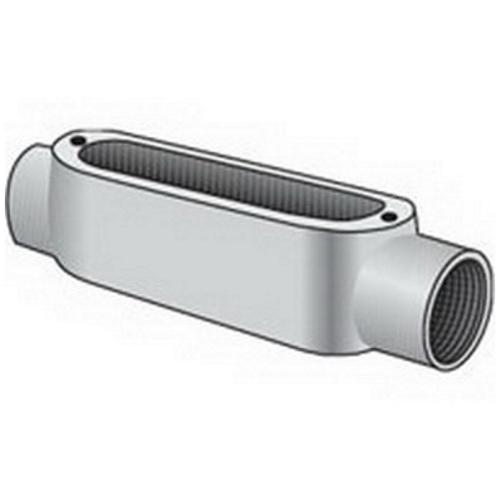

Appleton C150 Conduit Outlet Body
Part Number # C150
SKU # 280730
Appleton C150 Key Features
| Brand: | Appleton |
|---|---|
| Part Number # : | C150 |
| SKU #: | 280730 |
| Capacity: | 35.3, 35.3 cu-in |
| Dimensions: | 9-1/4 in L x 2-5/8 in W x 2-3/4 in H |
| Enclosure: | NEMA FB-1 |
| Finish: | Aluminum Enamel/Zinc Electroplated |
| Hub Size: | 1-1/2, 1-1/2 in |
| Type: | Type C, Type-C |
| Connection type: | Tapered FNPT |
| Country of origin: | MX |
| Material: | Malleable Iron |
| Mounting type: | Surface |
| Manufacturer Name: | Emerson Electric |
| UNSPSC: | 39131708 |
| UPC: | 00783126073607 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Appleton C150 Conduit Outlet Body
Brand: Appleton
Part Number: C150
O-Z/Gedney Conduit Outlet Body, Type-C, 1-1/2 in Hub, 2 Hubs, 35.3 cu-in, NEMA FB-1 Enclosure, Tapered FNPT, Surface Mount, Malleable Iron, Aluminum Enamel/Zinc Electroplated, 9-1/4 in L x 2-5/8 in W x 2-3/4 in H
Additional Description: APLE-C150 1-1/2 IN IRON COND BODY TYPE C
Catalog Description: OZ-Gedney Spec 5 Type C Conduit Body, 1-1/2 IN Hub, Length: 9-1/4 IN, 2-5/8 IN Width, 2-3/4 IN Height, Malleable Iron, Finish: Zinc Electroplated With Aluminum Enamel, Connection: Tapered FNPT, 3 (1 AWG) Conductors, 36 CU-IN Volume, Third Party Cert
C150 Application
Rigid/IMC Conduit ApplicationsC150 Item Features
- Smooth, rounded integral bushing in hubs protects conductor insulation
- Accurately tapped, tapered threads for tight, rigid joints and excellent ground continuity
- Form 35 malleable iron UNILETS are high tensile strength and ductility
- High corrosion resistance, high impact and shock resistance
- Sizes with flat back design ideal where fitting is mounted flat against surface
- Raintight when an Appleton cover and gasket are installed
- Tapered threaded hubs (NPT)
- Raintight when used with gasketed covers
- Internal volume and maximum wire capacity clearly marked on castings
- Complete interchangeability with other manufacturers style 5 or 35 conduit bodies
- Malleable iron suitable for use in concrete
C150 Standards
ARRA Compliant|UL 514A File No. E18095|C22.2 No. 18/009795 Certified|Federal Specification A-A-50563|Hazardous Locations Class 1, Div 2 Per NEC Section 501-4(B)SKU #280730Part Number #C150UNSPSC39131708UPC00783126073607
Image provided may only be a representation of final product and may include optional equipment
