Part Number # C150CG
SKU # 2458324
C150CG
Appleton C150CG
Part Number # C150CG
SKU # 2458324
Appleton C150CG Key Features
| Brand: | Appleton |
|---|---|
| Part Number # : | C150CG |
| SKU #: | 2458324 |
| Capacity: | 36 cu-in |
| Dimensions: | 9-1/4 in L x 2-5/8 in W x 2-3/4 in H |
| Enclosure: | NEMA FB-1/FB-2.1 |
| Finish: | Triple Coated |
| Hub Size: | 1-1/2 in |
| Type: | Type-C |
| Connection type: | Tapered FNPT |
| Country of origin: | MX |
| Material: | Malleable Iron |
| Mounting type: | Surface |
| Manufacturer Name: | Emerson Electric |
| UNSPSC: | 39131708 |
| UPC: | 00783126058819 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Appleton C150CG
Brand: Appleton
Part Number: C150CG

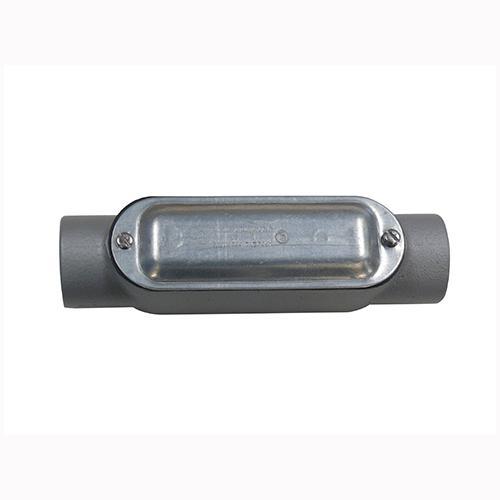

O-Z/Gedney Conduit Outlet Body, Type C, 1-1/2 in Hub, 2 Hubs, 36 cu-in Capacity, NEMA FB-1/FB-2.1 Enclosure, Tapered FNPT Connection, Surface Mounting, Malleable Iron, Triple Coated, 9-1/4 in L x 2-5/8 in W x 2-3/4 in H
Additional Description: APLE-C150CG 1-1/2 IN BODY/CVR/GSKT ASSY C
Catalog Description: Rigid Conduit Body, Access Opening Side, Configuration C, Cover Type Zinc Electroplated Steel, Hub Location Straight, Number of Hubs 2, Hub Size 1-1/2 Inch, Size 9-1/4 Inch L x 2-5/8 Inch W x 2-3/4 Inch H, Installation Threaded, Material Hot Dip Galvanized Aluminum Enameled Malleable Iron, Approval UL 514A, CSA C22.2, Used On Rigid Conduit/IMC, Applicable Standard Federal Specification A-A-50563, NEMA FB-1/FB-2.10, Capacity 36 Cu Inch
C150CG Application
Rigid/IMC Conduit ApplicationsC150CG Item Features
- Smooth, rounded integral bushing in hubs protects conductor insulation
- Accurately tapped, tapered threads for tight, rigid joints and excellent ground continuity
- Form 35 malleable iron UNILETS are high tensile strength and ductility
- High corrosion resistance, high impact and shock resistance
- Sizes with flat back design ideal where fitting is mounted flat against surface
- Raintight when an Appleton cover and gasket are installed
- Tapered threaded hubs (NPT)
- Raintight when used with gasketed covers
- Internal volume and maximum wire capacity clearly marked on castings
- Complete interchangeability with other manufacturers style 5 or 35 conduit bodies
- Malleable iron suitable for use in concrete
C150CG Standards
ARRA Compliant|UL 514A File No. E18095|C22.2 No. 18/009795 Certified|Federal Specification A-A-50563|Hazardous Locations Class 1, Div 2 Per NEC Section 501-4(B)SKU #2458324Part Number #C150CGUNSPSC39131708UPC00783126058819
Image provided may only be a representation of final product and may include optional equipment
