Part Number # C50ACGA
SKU # 294430
C50ACGA

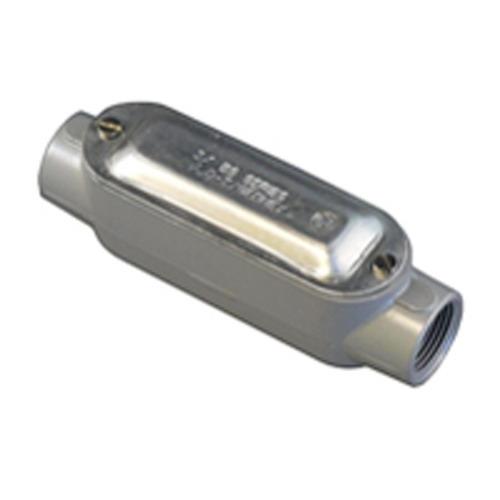

Appleton C50ACGA Conduit Outlet Body
Part Number # C50ACGA
SKU # 294430
Appleton C50ACGA Key Features
| Brand: | Appleton |
|---|---|
| Part Number # : | C50ACGA |
| SKU #: | 294430 |
| UNSPSC: | 39131708 |
| UPC: | 00781381826174 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Appleton C50ACGA Conduit Outlet Body
Brand: Appleton
Part Number: C50ACGA
Appleton UNILETS Conduit Outlet Body, Type-C, 2 Hubs, 4 cu-in Capacity, Form 85 Form, NEMA FB-1 Enclosure, Tapered FNPT Connection, Surface Mounting, Pressure Cast Aluminum, Epoxy Powder Coated, 4.75 in L x 1.31 in W x 1.38 in H Dimensions
Additional Description: APLE-C50ACGA 1/2 IN C COND BODY ASSY ALUM
Catalog Description: Form 85 UNILETS Type C Conduit Outlet Body With Assembled Cover And Gasket, Hub Size: 1/2 IN, Form: 85, Length: 4-3/4 IN, Width: 1.31 IN, Height: 1.38 IN, Material: Pressure Cast Aluminum, Finish: Epoxy Powder Coat, Connection: Tapered F
C50ACGA Application
For Rigid Steel/Aluminum, IMC and EMT ConduitC50ACGA Item Features
- Smooth, rounded integral bushing in hubs protects conductor insulation
- Roomy interiors more wiring space
- Accurately tapped, tapered threads for tight, rigid joints and excellent ground continuity
- Form 85 copper free aluminum UNILETS are lightweight, self oxidizing, self-renewing and offer a high corrosion resistance
- Lightweight aluminum facilitates shipping, handling and installing
- Sizes with flat back design ideal where fitting is mounted flat against surface
- Internal volume and maximum wire capacity clearly marked on castings
- Threaded style is raintight when used with casketed covers
C50ACGA Standards
UL 514A/514B/E2527|CSA C22.2 No. 18.3/065183SKU #294430Part Number #C50ACGAUNSPSC39131708UPC00781381826174
Image provided may only be a representation of final product and may include optional equipment
