Part Number # CESD6034
SKU # 2444202
Appleton CESD6034 Key Features
| Brand: | Appleton |
|---|---|
| Part Number # : | CESD6034 |
| SKU #: | 2444202 |
| Amperage Rating: | 60 A |
| Dimensions: | 12.75 in H x 7-1/4 in W x 9.31 in D |
| Horsepower: | 5 hp |
| NEMA Rating: | NEMA 3R |
| Number of Poles: | 4 |
| Number of Wires: | 3 |
| Series: | CESD |
| Terminal Type: | Pressure Wire |
| Type: | 3-Phase Feed Through Grounding Style 2 |
| Country of origin: | MX |
| Material: | Copper Free Aluminum |
| Manufacturer Name: | Emerson Electric |
| UNSPSC: | 39121406 |
| UPC: | 00781381188357 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Appleton CESD6034
Brand: Appleton
Part Number: CESD6034
Appleton® Explosionproof Receptacle, 3-Phase Feed Through Grounding Style 2, Series: CESD, 125 to 250 VAC, 60 A, 5 hp, 4 Pole, 3 Wires, NEMA 3R NEMA Rating, Pressure Wire Terminal, Copper Free Aluminum, 12.75 in H x 7-1/4 in W x 9.31 in D Dimensions
Additional Description: APLE-CESD6034 RECEPTACLE 3W 4P 60A CESD
Catalog Description: Appleton CESD Series Receptacle With Mounting Box, Number Of Poles: 4, Number Of Wires: 3, Amperage Rating: 60 AMP, Voltage Rating: 125 - 250 VAC, Phase: 3 PH, Material: Copperfree (4/10 Of 1 PCT Maximum) Aluminum Receptacle And Cover, Malleable Iron Mounting Box, Mounting: Surface Mount With 1-1/4 IN Feed-Thru Hub, Connection: Pressure Wire Terminal, Motor Horsepower: 5 HP At 125 - 250 VAC, Finish: Ceramic Burnished Receptacle And Triple-Coat (Zinc Electroplate, Chromate And Epoxy Powder Coat) Mounting Box, Dimensions: 7-1/4 IN Width X 12.75 IN Height X 9.31 IN Depth, Standard: Class I, Division 1 And 2, Groups D, UL 1010 (UL 1203), UL 894, UL 1682, UL 1686, UL Listed: E10784, CSA Standard: C22. No 30, C22.2 No. 159, C22.2 No 182.1, For CPH Mating Plugs
CESD6034 Application
CPH Mating Plugs, Lighting Systems, Conveyors, Heaters, Motor-Generator Sets, Air Conditioners, Compressors and Pumps ApplicationsCESD6034 Includes
Vertical Feed-Thru HubsCESD6034 Item Features
- Shell and extra pole grounding style 2
- Delayed action safety construction with Slide-Lok design
- Factory sealed, external seals not required in most areas, arcing is safely confined to receptacle interior
- Energized receptacle contacts deeply recessed to reduce danger of accidental touching
- Spring door keeps dust out of receptacle when plug is not in use
- Unique blade type, brass contacts exert constant pressure along entire contact surface and provide superior electrical contact
- Contacts have beryllium copper wire springs
- Insulators provide superior dielectric and mechanical strength and lowest arc tracking
- Smooth, rounded integral bushing in each hub protects conductor insulation
- Fiberglass reinforced polyester insulating blocks
CESD6034 Standards
Class I, Division 1 And 2, Groups D; UL 1010 (UL 1203), UL 894, UL 1682, UL 1686; UL Listed: E10784; CSA Standard: C22. No 30, C22.2 No. 159, C22.2 No 182.1CESD6034 Warranty
LimitedSKU #2444202Part Number #CESD6034UNSPSC39121406UPC00781381188357

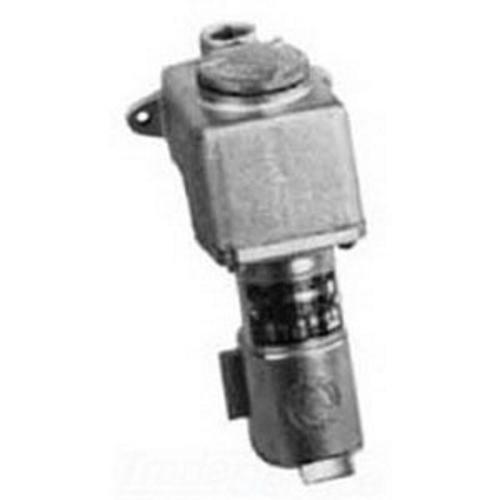

Image provided may only be a representation of final product and may include optional equipment
