Part Number # CG2050
SKU # 2293432
CG2050
Appleton CG2050 Grounding Connector
Part Number # CG2050
SKU # 2293432
Appleton CG2050 Key Features
| Brand: | Appleton |
|---|---|
| Part Number # : | CG2050 |
| SKU #: | 2293432 |
| Conductor Size: | 300 to 500, 300 to 500 kcmil |
| Dimensions: | 3-7/8 in W x 1-7/8 in D x 4-1/2 in H |
| Series: | CG Series |
| Type: | Specification Grade |
| Connection type: | Parallel/Right Angle Cable to Pipe |
| Country of origin: | US |
| Material: | Copper |
| Manufacturer Name: | Emerson Electric |
| UNSPSC: | 39121613 |
| UPC: | 00783126092035 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Appleton CG2050 Grounding Connector
Brand: Appleton
Part Number: CG2050
O-Z/Gedney Grounding Connector, Specification Grade, Series: CG Series, 2 in Pipe, 300 to 500 kcmil Conductor, Parallel/Right Angle Cable to Pipe, U-Bolt to Pipe/Cable Clamp Installation, Copper, 3-7/8 in W x 1-7/8 in D x 4-1/2 in H
Additional Description: APLE-CG2050 2 IN PIPE GND CONN
Catalog Description: Pipe Ground Connector, Conductor Size 300 to 500 KCMIL, IPS Size 2 Inch, Size 3-7/8 Inch W x 1-7/8 Inch D x 4-1/2 Inch H, Installation U Bolt to Pipe, Cable Clamp, Material High Strength Copper Alloy Body, High Strength Silicon Bronze Hardware, Approval UL 467, CSA C22.2, Used On (1) Cable Parallel or 90 Deg to Pipe, Applicable Standard W-F-406E
CG2050 Item Features
- A high strength corrosion-resistant copper alloy ground connector having a reversible contact plate which permits the ground wire to be connected either at right angles or parallel to a ground pipe
- The fitting is designed so that the saddle can be installed before the ground connection is made
- High strength silicon bronze hardware permits high clamping pressures to be applied
- Suitable for direct burial
- For ground pipe smaller than 2 in use Type ABG and wet locations
CG2050 Standards
CEC Certified|CSA 057250/C22.2 No. 41|Federal Specification W-F-406E|NEC Certified|UL 467/E-24264SKU #2293432Part Number #CG2050UNSPSC39121613UPC00783126092035

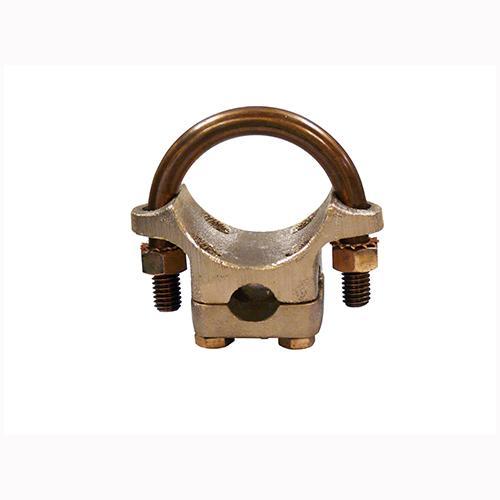

Image provided may only be a representation of final product and may include optional equipment
